C++ strings类的应用

首先感谢starrysky师傅的帮助，师傅人美心善

先看一道题，是SICTF ROUND#3的C++ 栈溢出

1 2 3 4 5 6 7 8

u24@u24-VMware-Virtual-Platform:~/桌面/sictf$ pwn checksec overflow [!] Could not populate PLT: No module named 'distutils' [*] '/home/u24/桌面/sictf/overflow'     Arch:     amd64-64-little     RELRO:    Partial RELRO     Stack:    Canary found     NX:       NX enabled     PIE:      No PIE (0x400000)

看汇编代码，主要存在三个函数main、vuln、read_flag（自己定义的）；

main

主要是创建一个string对象v7，然后传到vuln函数处理，在之后就是输出和析构对象

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

__int64 __fastcall main(int a1, char **a2, char **a3) {   __int64 v4; // [rsp+10h] [rbp-60h]   __int64 v5; // [rsp+18h] [rbp-58h]   __int64 v6; // [rsp+20h] [rbp-50h]   _BYTE v7[32]; // [rsp+48h] [rbp-28h] BYREF   unsigned __int64 v8; // [rsp+68h] [rbp-8h]     v8 = __readfsqword(0x28u);   std::string::basic_string(v7, a2, a3);   vuln((__int64)v7);   v6 = std::operator<<<std::char_traits<char>>(&std::cout, "You said: ");   v5 = std::operator<<<char>(v6, v7);   std::operator<<<std::char_traits<char>>(v5, "\n");   v4 = std::operator<<<std::char_traits<char>>(&std::cout, "Bye~");   std::operator<<<std::char_traits<char>>(v4, "\n");   std::string::~string(v7);   return 0LL; }

vuln

从vuln函数不难看出会接收字符数组，然后将接受的赋值给字符串对象v7，但是问题就出现在这个std::string::operator=函数上

1 2 3 4 5 6 7 8 9 10 11 12 13

unsigned __int64 __fastcall sub_4012C0(__int64 a1) {   __int64 v1; // rax   char v3[72]; // [rsp+10h] [rbp-50h] BYREF   unsigned __int64 v4; // [rsp+58h] [rbp-8h]     v4 = __readfsqword(0x28u);   v1 = std::operator<<<std::char_traits<char>>(&std::cout, "What do you want to say?");   std::operator<<<std::char_traits<char>>(v1, "\n");   std::operator>><char,std::char_traits<char>>(&std::cin);   std::string::operator=(a1, v3);   return __readfsqword(0x28u); }

read_flag

后门函数，不多讲

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

unsigned __int64 read_flag() {   __int64 v0; // rax   __int64 v1; // rax   __int64 v2; // rax   __int64 v3; // rax   FILE *stream; // [rsp+8h] [rbp-58h]   char s[72]; // [rsp+10h] [rbp-50h] BYREF   unsigned __int64 v7; // [rsp+58h] [rbp-8h]     v7 = __readfsqword(0x28u);   v0 = std::operator<<<std::char_traits<char>>(&std::cout, "Success!");   std::operator<<<std::char_traits<char>>(v0, "\n");   stream = fopen("flag", "r");   if ( stream )   {     fgets(s, 64, stream);     v2 = std::operator<<<std::char_traits<char>>(&std::cout, "Flag: ");     v3 = std::operator<<<std::char_traits<char>>(v2, s);     std::operator<<<std::char_traits<char>>(v3, "\n");   }   else   {     v1 = std::operator<<<std::char_traits<char>>(&std::cout, "Flag is missing. Please contact an admin.");     std::operator<<<std::char_traits<char>>(v1, "\n");   }   return __readfsqword(0x28u); }

调试部分

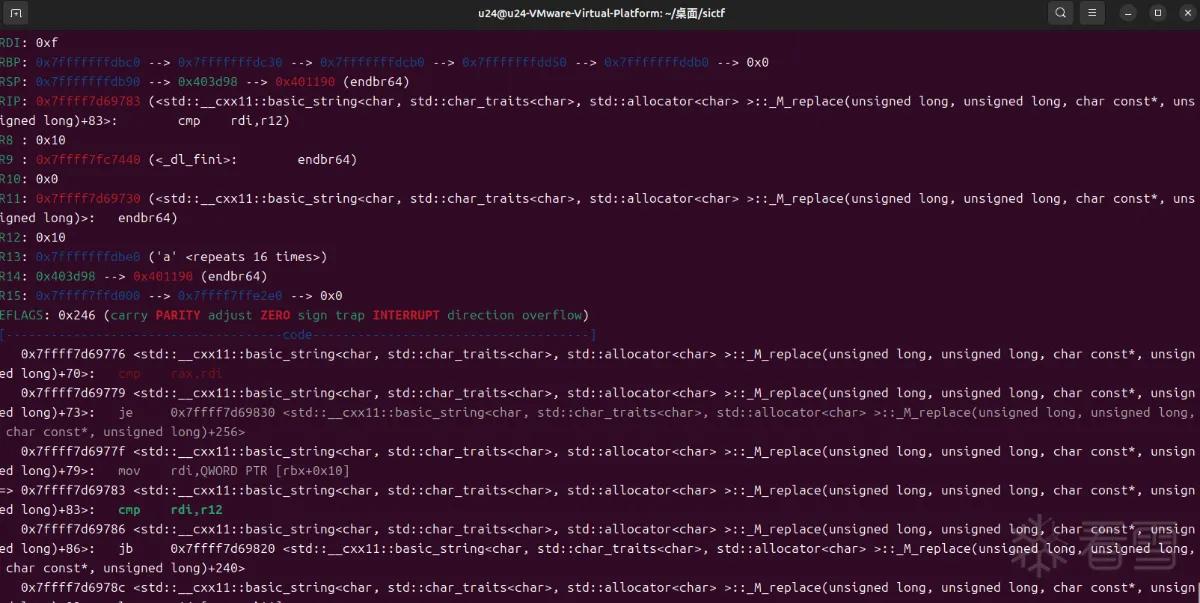

在调试过程中，发现了std::string::operator=函数的调用过程。
给出他的汇编指令

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Dump of assembler code for function _ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEaSEPKc: => 0x00007ffff7d699a0 <+0>:    endbr64    0x00007ffff7d699a4 <+4>:   push   rbp    0x00007ffff7d699a5 <+5>:   mov    rbp,rsp    0x00007ffff7d699a8 <+8>:   push   r12    0x00007ffff7d699aa <+10>:  mov    r12,rsi    0x00007ffff7d699ad <+13>:  push   rbx    0x00007ffff7d699ae <+14>:  mov    rbx,rdi    0x00007ffff7d699b1 <+17>:  mov    rdi,rsi    0x00007ffff7d699b4 <+20>:  call   0x7ffff7ca2cf0 <strlen@plt>    0x00007ffff7d699b9 <+25>:  mov    rdx,QWORD PTR [rbx+0x8]    0x00007ffff7d699bd <+29>:  mov    rcx,r12    0x00007ffff7d699c0 <+32>:  mov    rdi,rbx    0x00007ffff7d699c3 <+35>:  mov    r8,rax    0x00007ffff7d699c6 <+38>:  pop    rbx    0x00007ffff7d699c7 <+39>:  xor    esi,esi    0x00007ffff7d699c9 <+41>:  pop    r12    0x00007ffff7d699cb <+43>:  pop    rbp    0x00007ffff7d699cc <+44>:  jmp    0x7ffff7ca1560 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)@plt>

可见它是先调用strlen函数计算rsi也就是用户输入的内容（PS：strlen存在\x00截断）。然后在进入_M_replace函数，该函数会将先将用户输入的字符串长度与0xf就行比较，如果大于就会创建一个堆来存储字符串；反之就会放在dst地址中。

调用创建堆的过程如下，会调用一个_M_mutate函数

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

0x7ffff7d69820 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+240>:  mov    rcx,r13    0x7ffff7d69823 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+243>:  mov    rdi,rbx    0x7ffff7d69826 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+246>:  call   0x7ffff7ca5150 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_mutate(unsigned long, unsigned long, char const*, unsigned long)@plt> => 0x7ffff7d6982b <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+251>:   jmp    0x7ffff7d697e3 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+179>    0x7ffff7d6982d <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+253>:  nop    DWORD PTR [rax]    0x7ffff7d69830 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+256>:  mov    edi,0xf    0x7ffff7d69835 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+261>:  jmp    0x7ffff7d69783 <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+83>    0x7ffff7d6983a <std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long)+266>:  nop    WORD PTR [rax+rax*1+0x0]                                                               JUMP is NOT taken [------------------------------------stack-------------------------------------] 0000| 0x7fffffffdb90 --> 0x403d98 --> 0x401190 (endbr64) 0008| 0x7fffffffdb98 --> 0x7ffff7e7a6a0 (:cin>:   0x00007ffff7e73870) 0016| 0x7fffffffdba0 --> 0x7fffffffddd8 --> 0x7fffffffe121 ("/home/u24/桌面/sictf/overflow") 0024| 0x7fffffffdba8 --> 0x1 0032| 0x7fffffffdbb0 --> 0x0 0040| 0x7fffffffdbb8 --> 0x403d98 --> 0x401190 (endbr64) 0048| 0x7fffffffdbc0 --> 0x7fffffffdc30 --> 0x7fffffffdcb0 --> 0x7fffffffdd50 --> 0x7fffffffddb0 --> 0x0 0056| 0x7fffffffdbc8 --> 0x40131c (mov    rax,QWORD PTR fs:0x28) [------------------------------------------------------------------------------] Legend: code, data, rodata, value 0x00007ffff7d6982b in std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >::_M_replace(unsigned long, unsigned long, char const*, unsigned long) () from /lib/x86_64-linux-gnu/libstdc++.so.6 gdb-peda$ find aaaaaaaaaaaaaaaa Searching for 'aaaaaaaaaaaaaaaa' in: None ranges Found 2 results, display max 2 items:  [heap] : 0x4172b0 ('a' <repeats 16 times>) [stack] : 0x7fffffffdbe0 ('a' <repeats 16 times>)

漏洞点

1.前面铺垫了那么多，其实它是根据strlen函数获取输入的长度，又由于strlen存在\x00截断，那么我们可以构造一个payload，在0-15字节之间填充一个\x00截断，就可以造成长度小于等于15；然后将内容直接复制到dst中而不是堆中。
2.由于输入也没有限制长度，所以可以溢出到dst修改他的指针值为stack_chk_fail@got，再把最开始的8字节修改为read_flag地址，那么就会把劫持stack_chk_fail到后门函数上，获取flag

exp在下面自取
之后又在网上找了一个C++学习网站，感觉还行
https://legacy.cplusplus.com/reference/string/basic_string/
