• [原创]shopee app算法分析第一篇

shopee app算法分析第一篇

分析完整算法大概要好几篇,耐心等待下

抓包

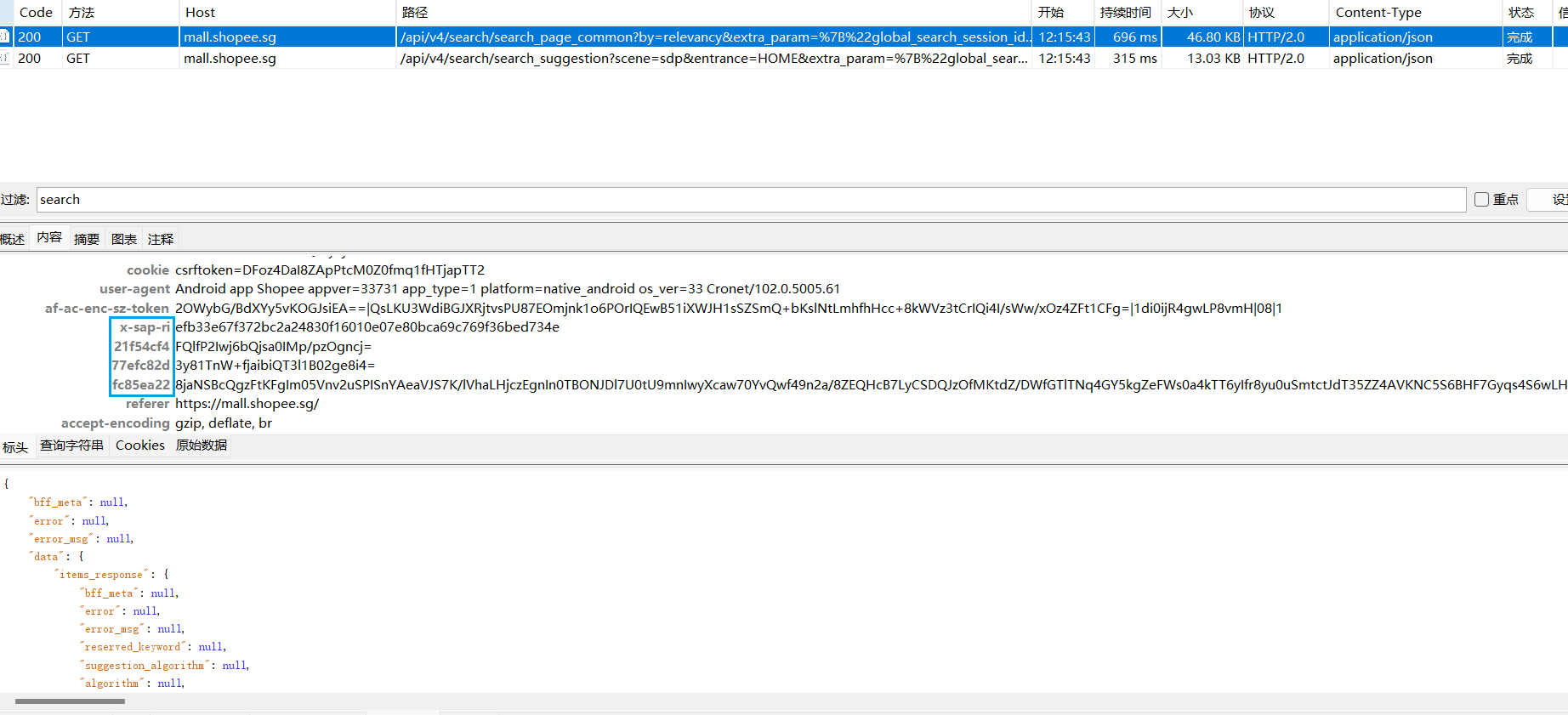

image-20241126220341011

抓的搜索接口,get请求,核心的有3个4字节键和x-sap-ri,如果是post,就是4个4字节键和值,多出来的一个和post的表单有关

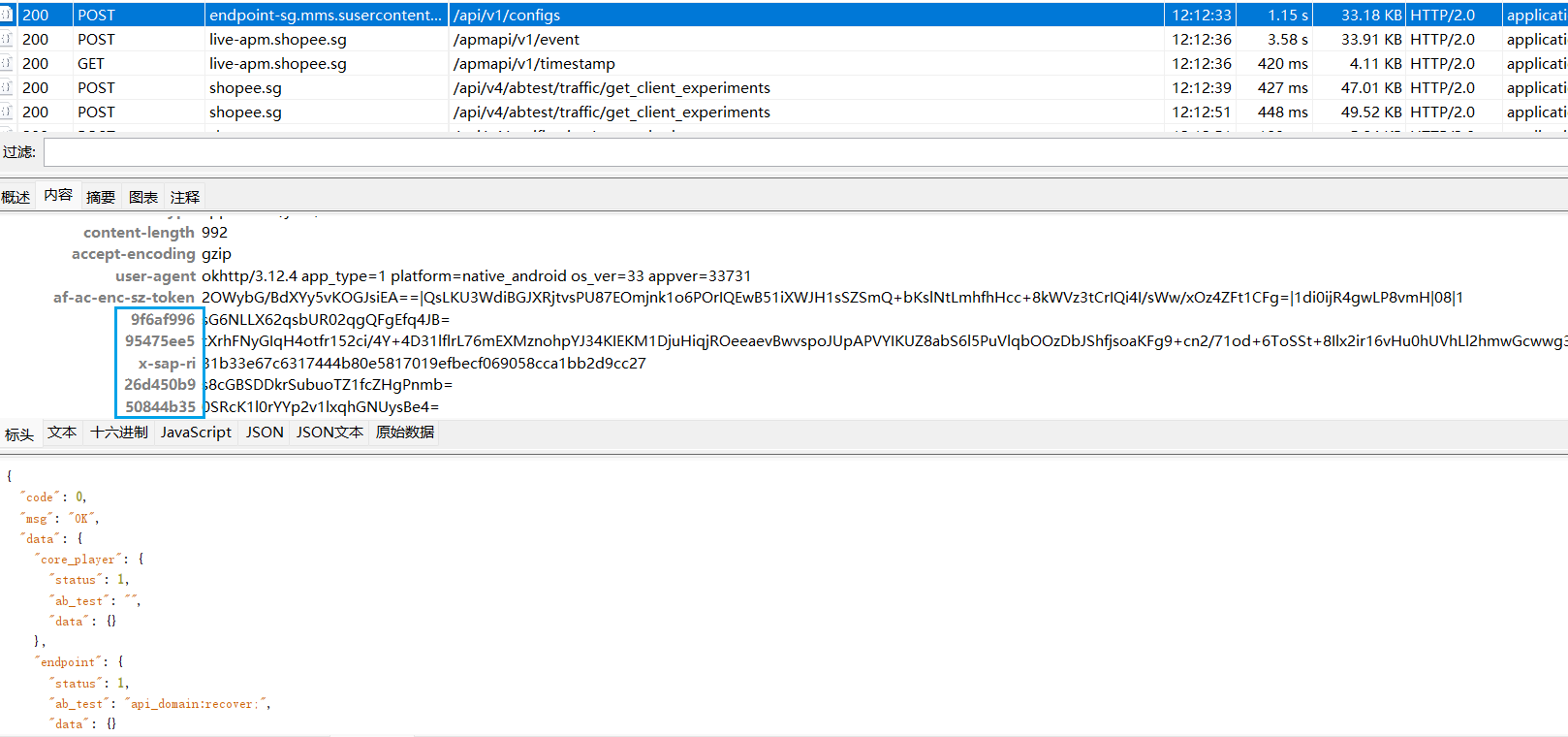

image-20241126220612188

后续内容都是post的,post会了,get肯定也会了,4个4字节3个短的,一个长的.这5个参数来着同一个so,libshpssdk.so,后面说怎么定位到的.

4字节的key和value也是一直变化的,最好摸清楚生成机制,随机可能引起风控.(有9套算法)

定位加密位置

1
2
3
4
5
6
7
8
9
10
11
Java.perform(function (){
    //     HashMap.put
    var hashMap = Java.use("java.util.HashMap");
    hashMap.put.implementation = function (a, b) {
        if(a!=null && a.equals("x-sap-ri")){
            console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Throwable").$new()))
            console.log("hashMap.put: ", a, b);
        }
        return this.put(a, b);
    }
})

太长了,放前面的结果

1
2
3
4
5
6
7
8
9
10
11
java.lang.Throwable
    at java.util.HashMap.put(Native Method)
    at org.json.JSONObject.put(JSONObject.java:276)
    at org.json.JSONTokener.readObject(JSONTokener.java:394)
    at org.json.JSONTokener.nextValue(JSONTokener.java:104)
    at org.json.JSONObject.<init>(JSONObject.java:168)
    at org.json.JSONObject.<init>(JSONObject.java:185)
    at com.shopee.shpssdk.SHPSSDK.uvwvvwvvw(Unknown Source:81)
    at com.shopee.shpssdk.SHPSSDK.requestDefense(Unknown Source:59)

hashMap.put:  x-sap-ri 443e41678c54f44f62b70d1901d115bc703ebab92a5b4251176d

在com.shopee.shpssdk.SHPSSDK.uvwvvwvvw方法里,这个app有很多站点的,初步看了只是包名不一样,函数,so偏移都是一样的,包名是com.shopee.xx xx是域名后面的,我使用的样本是ph,3.37.31

1
2
3
4
5
6
7
8
马来西亚：https://shopee.my
新加坡：https://shopee.sg
泰国：https://shopee.th
印度尼西亚：https://shopee.id
越南：https://shopee.vn
菲律宾：https://shopee.ph
台湾：https://shopee.tw
大陆：https://shopee.cn

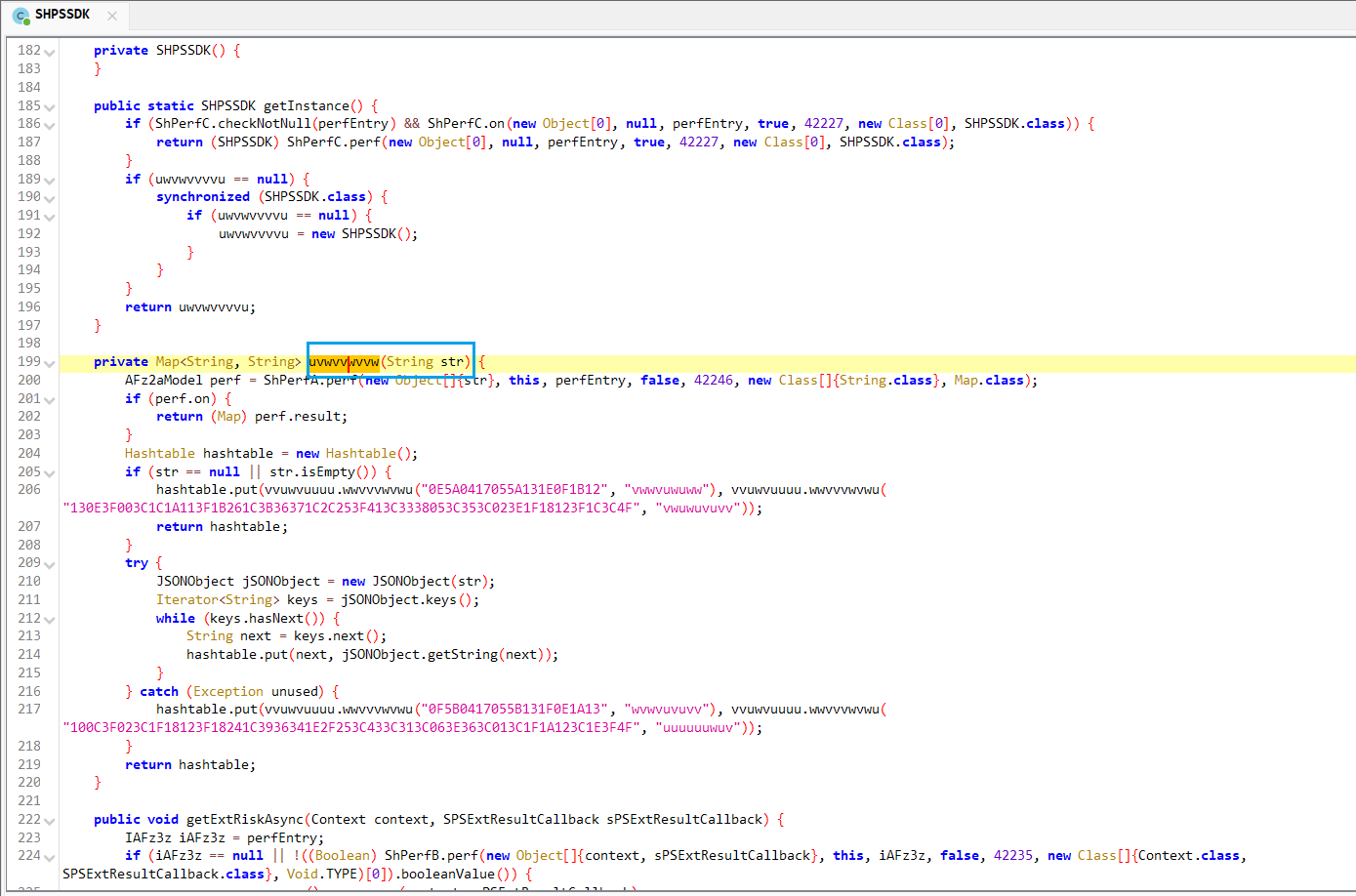

image-20241126221616280

这个位置值已经生成了,往上找调用,就一个,结果来自wvvvuwwu.vuwuuwvw(str.getBytes(), bArr),hook发现,第一个参数url,第二个表单(get就是null)

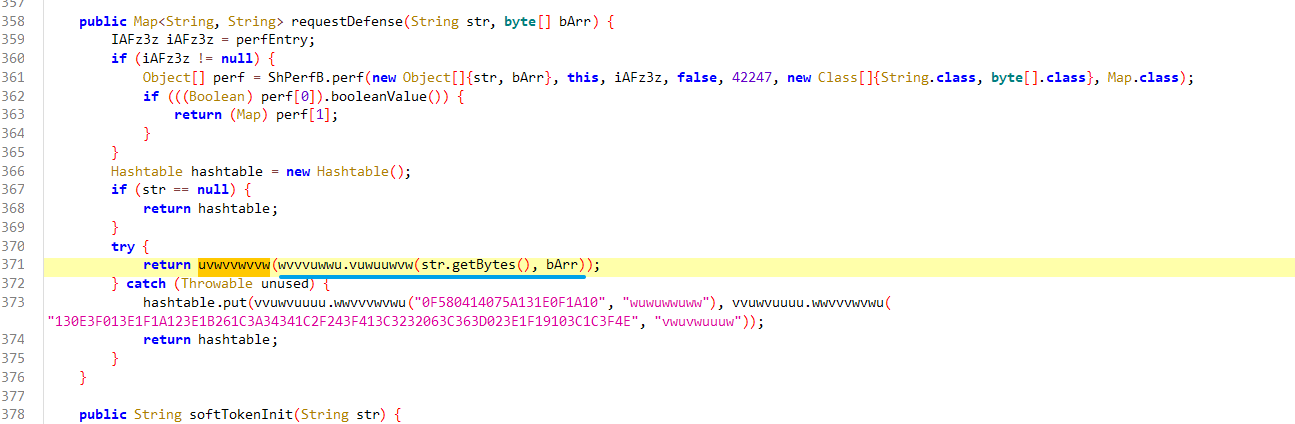

image-20241126221714102

点过去来到native注册的地方

image-20241126221845356

hook下libart

1
2
3
4
5
[RegisterNatives] method_count: 0x4
name: com.shopee.shpssdk.wvvvuwwu vuwuuwvv sig: (I)V module_name: libshpssdk.so offset: 0x1bef84
name: com.shopee.shpssdk.wvvvuwwu vuwuuwvu sig: (Lcom/shopee/shpssdk/wvvvuvvv;)I module_name: libshpssdk.so offset: 0x1bf478
name: com.shopee.shpssdk.wvvvuwwu vuwuuwvw sig: ([B[B)Ljava/lang/String; module_name: libshpssdk.so offset: 0x995dc
name: com.shopee.shpssdk.wvvvuwwu vuwuuwvvw sig: ([B)V module_name: libshpssdk.so offset: 0x9932c

so名字libshpssdk,偏移0x995dc,到lib目录下找发现一个so都没有,hook下dlopen

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
var dlopen = Module.findExportByName(null, "dlopen");//6.0
var android_dlopen_ext = Module.findExportByName(null, "android_dlopen_ext");//高版本8.1以上

Interceptor.attach(dlopen, {
    onEnter: function (args) {
        var path_ptr = args[0];
        var path = ptr(path_ptr).readCString();
        console.log("[dlopen:]", path);
    },
    onLeave: function (retval) {
        // Thread.sleep(3);
    }
});

Interceptor.attach(android_dlopen_ext, {
    onEnter: function (args) {
        var path_ptr = args[0];
        var path = ptr(path_ptr).readCString();
        console.log("[dlopen_ext:]", path);
    },
    onLeave: function (retval) {
            // Thread.sleep(3);
    }
});
1
/data/app/~~KVEKJlJur2r6197VML5LRw==/com.shopee.sg-ZyVbLWincySSEAiqQSuPLQ==/split_config.arm64_v8a.apk!/lib/arm64-v8a/libshpssdk.so

可以看到so是压缩了下,拖出来即可.

hook和主动调用

hook 固定一组入参

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Java.perform(function (){
    console.log('======================')
    let wvvvuwwu = Java.use("com.shopee.shpssdk.wvvvuwwu");
    wvvvuwwu["vuwuuwvw"].implementation = function (bArr, bArr2) {
        var ByteString = Java.use("com.android.okhttp.okio.ByteString");
        if(bArr!==null){
            try{
                console.log('111111111')
                console.log(`wvvvuwwu.vuwuuwvw is called: bArr=${ByteString.of(bArr).utf8()}, bArr2=${bArr2}`);
            }catch (e) {
            }
        }
        // console.log(`wvvvuwwu.vuwuuwvw is called: bArr=${bArr}, bArr2=${bArr2}`);
        let result = this["vuwuuwvw"](bArr, bArr2);
        console.log(`wvvvuwwu.vuwuuwvw result=${result}`);
        return result;
    };
})

注意脚本写法(排除空,异常字段),很多时候排除掉手机,app,frida版本这些的问题, 为什么明明确定是这个位置hook脚本就是没输出,考虑下是不是脚本有问题,有时候有问题是不会输出东西的,也不报错,然后你以为没走这,就是因为你对参数进行了错误操作,比如类型没判断正确,空没有排除掉导致脚本什么都不打印.好几个人问我,这里统一回复下.

call

都是基本写法,不熟悉多google,自己琢磨才能记得住.

1
2
3
4
5
6
7
8
9
10
11
12
function call(){
    Java.perform(function (){
        let wvvvuwwu = Java.use("com.shopee.shpssdk.wvvvuwwu");
        var str = 'https://mall.shopee.ph/api/v4/pages/bottom_tab_bar'
        var StringClass = Java.use('java.lang.String');
        var byteArray = StringClass.$new(str).getBytes();
        var str2 = '{"img_size":"3.0x","latitude":"","location":"[]","longitude":"","new_arrival_reddot_last_dismissed_ts":0,"feed_reddots":[{"timestamp":0,"noti_code":28}],"client_feature_meta":{"is_live_and_video_merged_tab_supported":false},"video_reddot_last_dismissed_ts":0,"view_count":[{"count":1,"source":0,"tab_name":"Live"}]}'
        var byteArray2 = StringClass.$new(str2).getBytes();
        var res = wvvvuwwu["vuwuuwvw"](byteArray,byteArray2)
        console.log('res==>',res)
    })
}

连续调用会有一个4字节key不变,1A9EC9B9,这个只和url有关,后续写还原,这个键对应的值解密出来是16字节随机+9套算法中的哪3套,第二篇写算法还原

1
2
3
4
5
6
7
8
9
url = '/api/v4/pages/bottom_tab_bar'
def getKey1(url):
    tmp = 0
    for i in bytearray(url.encode()):
        tmp = tmp*0x334b & 0xffffffff
        tmp=(tmp+i) & 0xffffffff
    key = tmp&0x7fffffff
    return f"{key:04X}"
print('getKey1',getKey1(url)) # 1A9EC9B9 还原这个只需要url

native call

native call的作用是方便确定哪些是so的初始化函数(不管有没有),可以节省后续很多时间.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
function stringToHexArray(str) {
    var hexArray = [];
    for (var i = 0; i < str.length; i++) {
        var hex = str.charCodeAt(i);
        hexArray.push(0x00 + hex);
    }
    return hexArray;
}

function call2(){
    var soAddr = Module.findBaseAddress("libshpssdk.so");
    var funAddr = soAddr.add(0x995dc);
    var fun = new NativeFunction(funAddr, 'pointer', ["pointer", "pointer",'pointer','pointer']);
    var JNIEnv = Java.vm.getEnv();

    var byteArray = stringToHexArray('https://mall.shopee.ph/api/v4/pages/bottom_tab_bar');
    var byteArrayPtr = Memory.alloc(byteArray.length);
    Memory.writeByteArray(byteArrayPtr, byteArray);

    var byteArray2 = stringToHexArray('{"img_size":"3.0x","latitude":"","location":"[]","longitude":"","new_arrival_reddot_last_dismissed_ts":0,"feed_reddots":[{"timestamp":0,"noti_code":28}],"client_feature_meta":{"is_live_and_video_merged_tab_supported":false},"video_reddot_last_dismissed_ts":0,"view_count":[{"count":1,"source":0,"tab_name":"Live"}]}');
    var byteArrayPtr2 = Memory.alloc(byteArray2.length);
    Memory.writeByteArray(byteArrayPtr2, byteArray2);


    var arr1 = JNIEnv.newByteArray(byteArray.length);
    JNIEnv.setByteArrayRegion(arr1,0,byteArray.length,byteArrayPtr)

    var arr2 = JNIEnv.newByteArray(byteArray2.length);
    JNIEnv.setByteArrayRegion(arr2,0,byteArray2.length,byteArrayPtr2)

    var res = fun(JNIEnv, ptr(0x0),arr1,arr2)
    var s = Java.cast(res, Java.use("java.lang.Object"));
    console.log(s)
}

在so刚加载后直接native call如果有正确结果就没有初始化,如果有需要一步步调用初始化直到生成正确结果,方便后续模拟执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
function delay_hook(so_name, hook_func) {
    var dlopen = Module.findExportByName(null, "dlopen");  // 6.0以下
    var android_dlopen_ext = Module.findExportByName(null, "android_dlopen_ext"); // 8.1以上

    Interceptor.attach(dlopen, {
        onEnter: function (args) {
            var path_ptr = args[0];
            var path = ptr(path_ptr).readCString();
            this.path = path;
        }, onLeave: function (retval) {
            if (this.path.indexOf(so_name) !== -1) {
                console.log("[dlopen:]", this.path);
                hook_func();

            }
        }
    });

    Interceptor.attach(android_dlopen_ext, {
        onEnter: function (args) {
            var path_ptr = args[0];
            var path = ptr(path_ptr).readCString();
            this.path = path;
        },
        onLeave: function (retval) {
            if (this.path.indexOf(so_name) !== -1) {
                console.log("\nandroid_dlopen_ext加载：", this.path);
                hook_func();
            }
        }
    });
}


function stringToHexArray(str) {
    var hexArray = [];
    for (var i = 0; i < str.length; i++) {
        var hex = str.charCodeAt(i);
        hexArray.push(0x00 + hex);
    }
    return hexArray;
}

function do_hook() {
    var soAddr = Module.findBaseAddress("libshpssdk.so");
    var funAddr = soAddr.add(0x995dc);
    var fun = new NativeFunction(funAddr, 'pointer', ["pointer", "pointer",'pointer','pointer']);
    var JNIEnv = Java.vm.getEnv();

    var byteArray = stringToHexArray('https://mall.shopee.ph/api/v4/pages/bottom_tab_bar');
    var byteArrayPtr = Memory.alloc(byteArray.length);
    Memory.writeByteArray(byteArrayPtr, byteArray);

    var byteArray2 = stringToHexArray('{"img_size":"3.0x","latitude":"","location":"[]","longitude":"","new_arrival_reddot_last_dismissed_ts":0,"feed_reddots":[{"timestamp":0,"noti_code":28}],"client_feature_meta":{"is_live_and_video_merged_tab_supported":false},"video_reddot_last_dismissed_ts":0,"view_count":[{"count":1,"source":0,"tab_name":"Live"}]}');
    var byteArrayPtr2 = Memory.alloc(byteArray2.length);
    Memory.writeByteArray(byteArrayPtr2, byteArray2);


    var arr1 = JNIEnv.newByteArray(byteArray.length);
    JNIEnv.setByteArrayRegion(arr1,0,byteArray.length,byteArrayPtr)

    var arr2 = JNIEnv.newByteArray(byteArray2.length);
    JNIEnv.setByteArrayRegion(arr2,0,byteArray2.length,byteArrayPtr2)

    var res = fun(JNIEnv, ptr(0x0),arr1,arr2)
    var s = Java.cast(res, Java.use("java.lang.Object"));
    console.log(s)

}
delay_hook("libshpssdk.so", do_hook);  // 改so的名字和do_hook的方法体

-f启动,很幸运没有初始化,国内大厂没有没有初始化的,这块占逆向比重也很大.

模拟执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
package com.shopee.fun;

import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Emulator;
import com.github.unidbg.Module;
import com.github.unidbg.file.FileResult;
import com.github.unidbg.file.IOResolver;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.linux.android.dvm.array.ByteArray;
import com.github.unidbg.memory.Memory;
import com.github.unidbg.virtualmodule.android.AndroidModule;

import java.io.File;

public class demo3 extends AbstractJni implements IOResolver {
    private final AndroidEmulator emulator;
    private final VM vm;
    private final Module module;
    @Override
    public FileResult resolve(Emulator emulator, String pathname, int oflags) {
        System.out.println("open file:" + pathname);
        return null;
    }
    demo3(){
        // 创建模拟器实例
        emulator = AndroidEmulatorBuilder.for64Bit().setProcessName("com.shopee.ph").build();
        emulator.getSyscallHandler().addIOResolver(this);
        // 获取模拟器的内存操作接口
        final Memory memory = emulator.getMemory();
        // 设置系统类库解析
        memory.setLibraryResolver(new AndroidResolver(23));
        // 创建Android虚拟机,传入APK，Unidbg可以替我们做部分签名校验的工作
        vm = emulator.createDalvikVM(new File("unidbg-android/src/test/java/com/shopee/files/xiap_ph3.37.31.apk"));
        // 设置JNI
        vm.setJni(this);
        // 打印日志
        vm.setVerbose(true);
        new AndroidModule(emulator, vm).register(memory);
        // 加载目标SO
         DalvikModule dm = vm.loadLibrary(new File("unidbg-android/src/test/java/com/shopee/files/libshpssdk2.so"), true);
        //获取本SO模块的句柄,后续需要用它
        module = dm.getModule();
        // 调用JNI OnLoad
        dm.callJNI_OnLoad(emulator);
    };
    public void callByAPI(){

        DvmClass RequestCryptUtils = vm.resolveClass("com/shopee/shpssdk/wvvvuwwu");


//        byte[] bytes = "https://mall.shopee.ph/api/v4/pages/bottom_tab_bar".getBytes();
        byte[] bytes = "https://mall.shopee.ph/api/v4/pages/bottom_tab_bar".getBytes();
        ByteArray arr1 = new ByteArray(vm,bytes);

        byte[] bytes2 = "{\"img_size\":\"3.0x\",\"latitude\":\"\",\"location\":\"[]\",\"longitude\":\"\",\"new_arrival_reddot_last_dismissed_ts\":0,\"feed_reddots\":[{\"timestamp\":0,\"noti_code\":28}],\"client_feature_meta\":{\"is_live_and_video_merged_tab_supported\":false},\"video_reddot_last_dismissed_ts\":0,\"view_count\":[{\"count\":1,\"source\":0,\"tab_name\":\"Live\"}]}".getBytes();
        ByteArray arr2 = new ByteArray(vm,bytes2);

//        emulator.traceCode(module.base,module.base+module.size);
        StringObject result = RequestCryptUtils.callStaticJniMethodObject(emulator, "vuwuuwvw([B[B)Ljava/lang/String;", arr1,arr2);
//        StringObject result = RequestCryptUtils.callStaticJniMethodObject(emulator, "vuwuuwvw([B[B)Ljava/lang/String;", arr1,null);
        System.out.println(result.toString());
    };
    public static void main(String[] args) {
        demo3 demo = new demo3();
//        demo.callByAPI();
    }
}

执行无异常

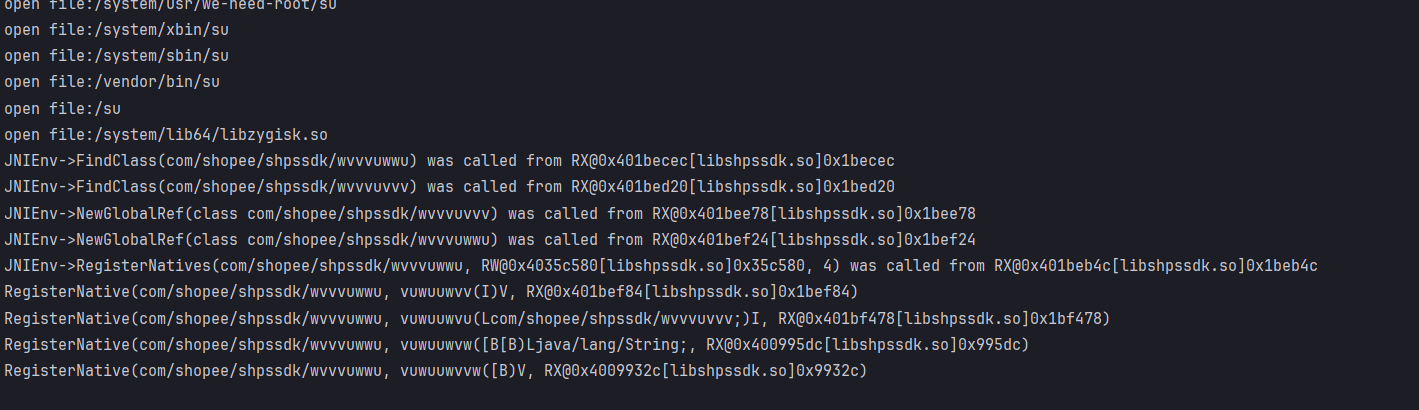

image-20241126225427782

然后调用函数. callByAPI放开

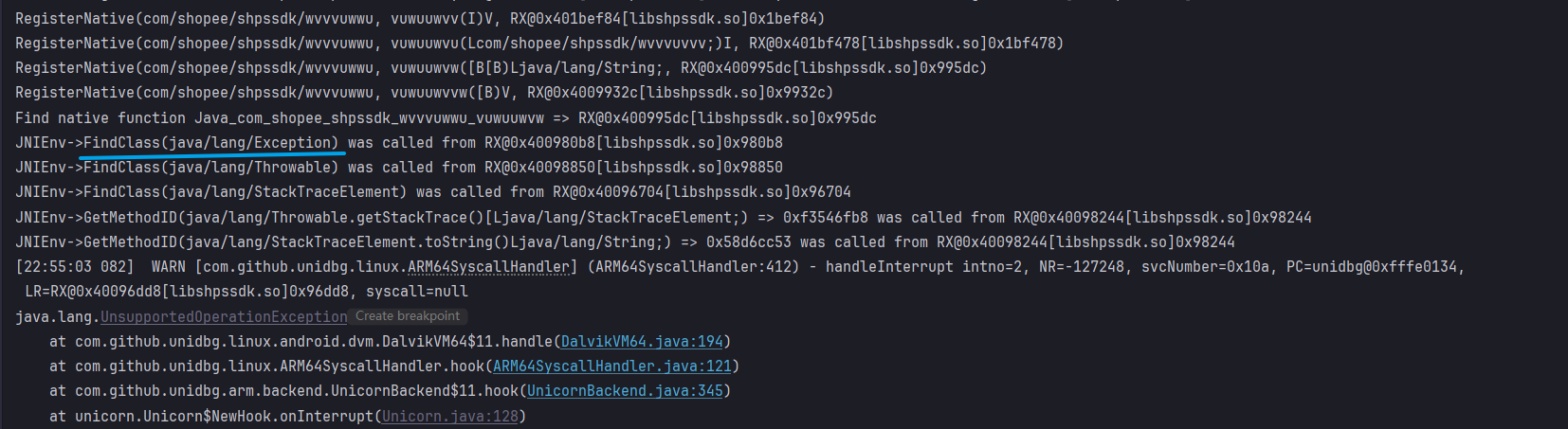

image-20241126225522242

上来就查找异常,上面验证了没有初始化,也就是说直接调用理论上是可以的.很明显上来就走到异常了. 要么放弃unidbg,用stalker,要么硬干,排除异常.

1
emulator.traceCode(module.base, module.base+module.size);

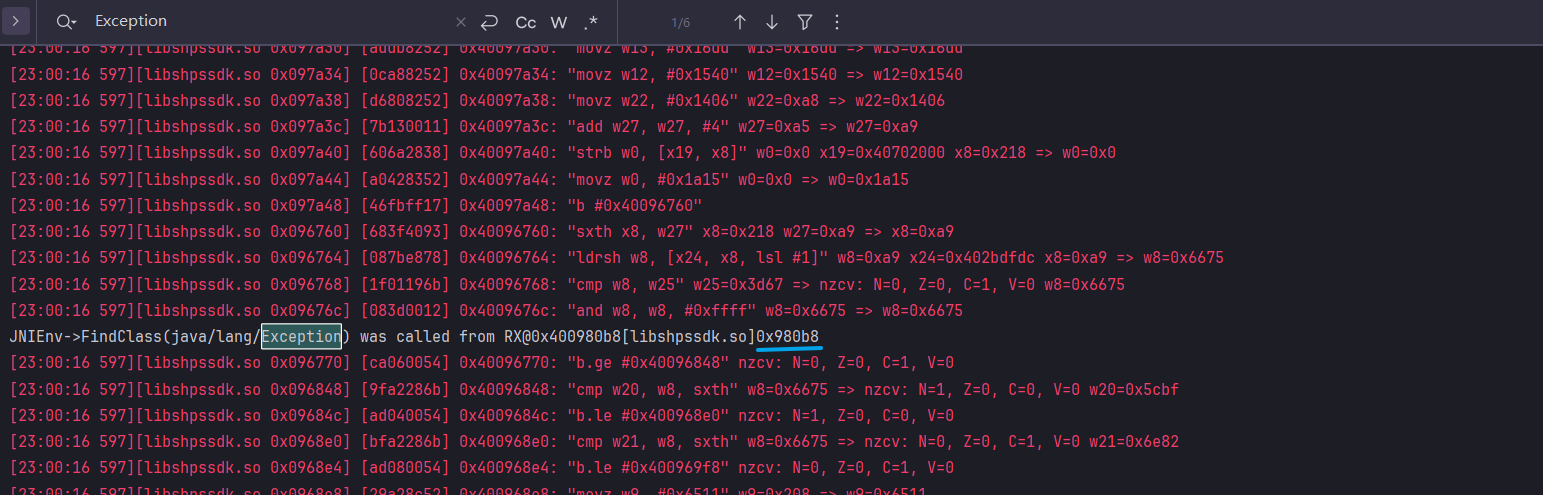

我选择试试排除异常,在刚调用函数的位置开启trace,运行

image-20241126230214931

刚开始异常的位置是0x980b8,ida中看看

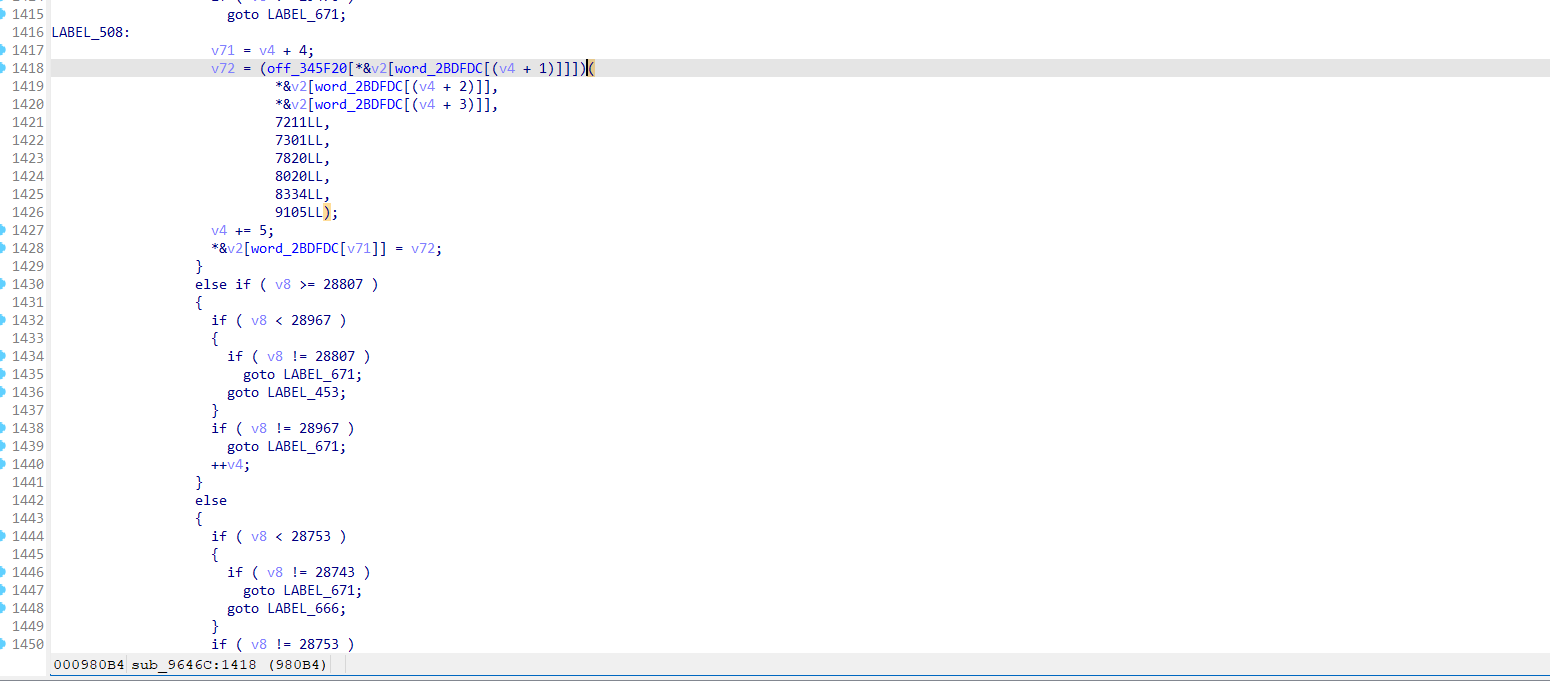

image-20241126230610607

没有有用的信息

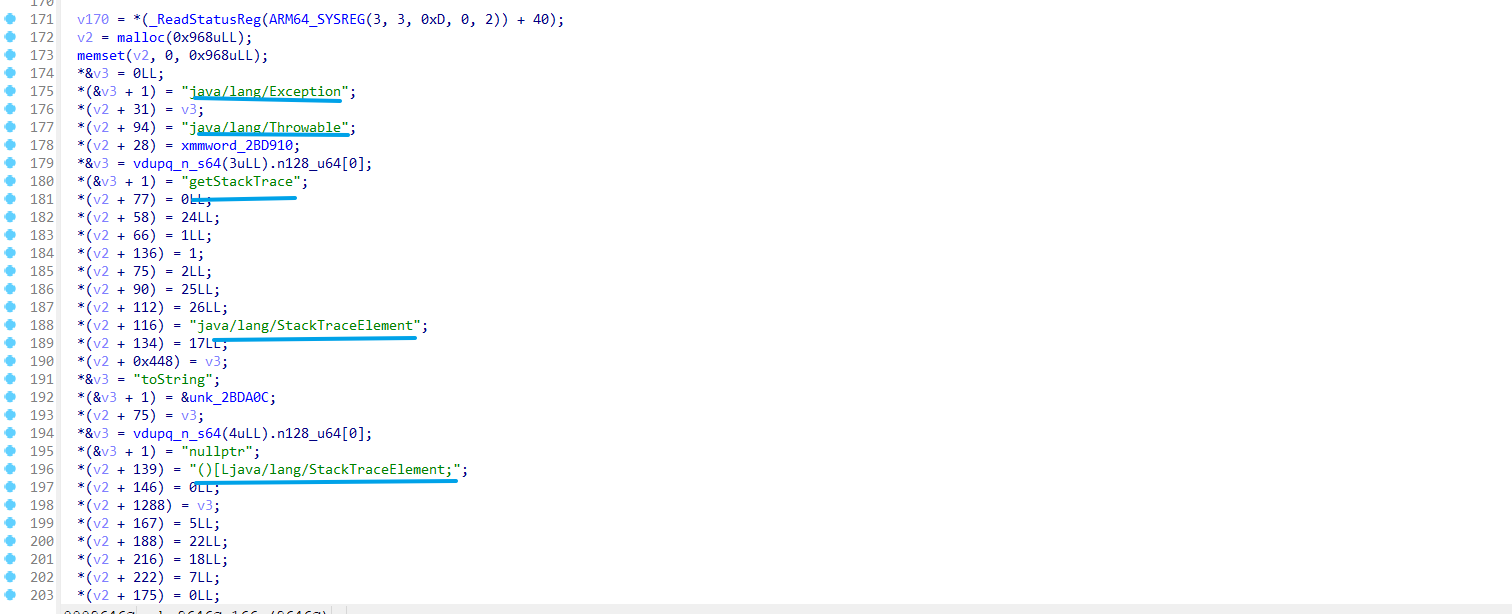

image-20241126230701341

往上找了找,看到了都是和异常相关的字段,判断应该是走入这个函数导致的异常,如果不让函数执行到这里是不是就可以绕过了?可以尝试一下,没有好的办法,不试你就只能扔到回收站.

排除异常

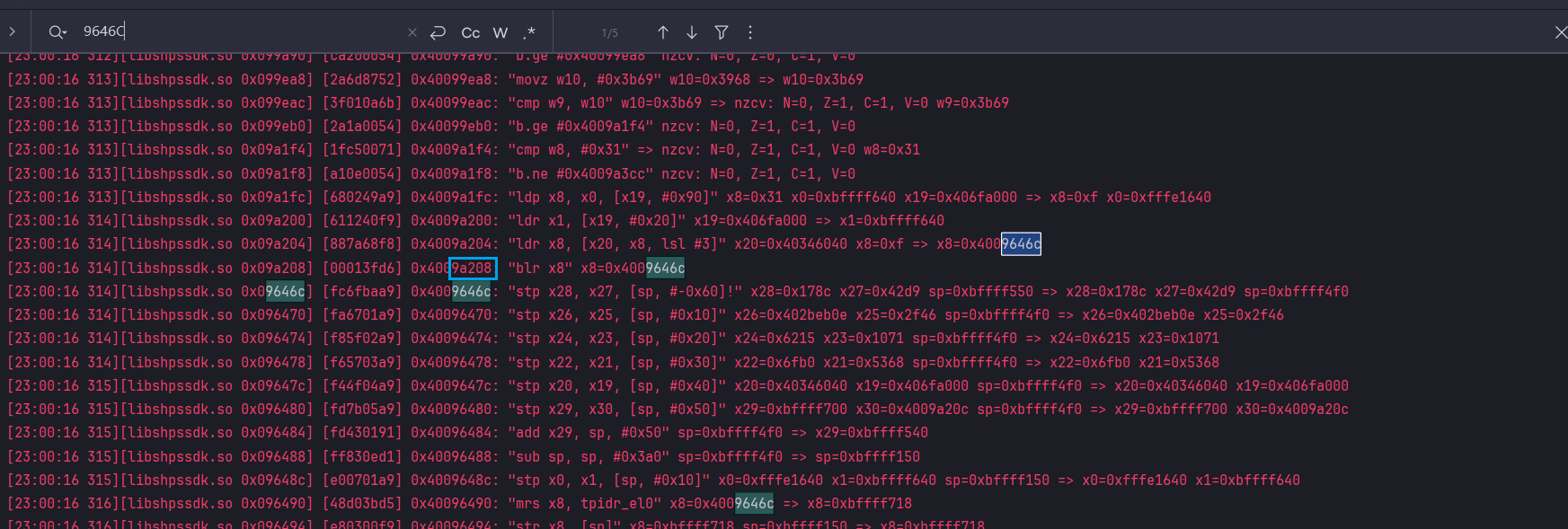

异常函数是sub_9646C

image-20241126231121159

日志中看到由9a204跳到异常

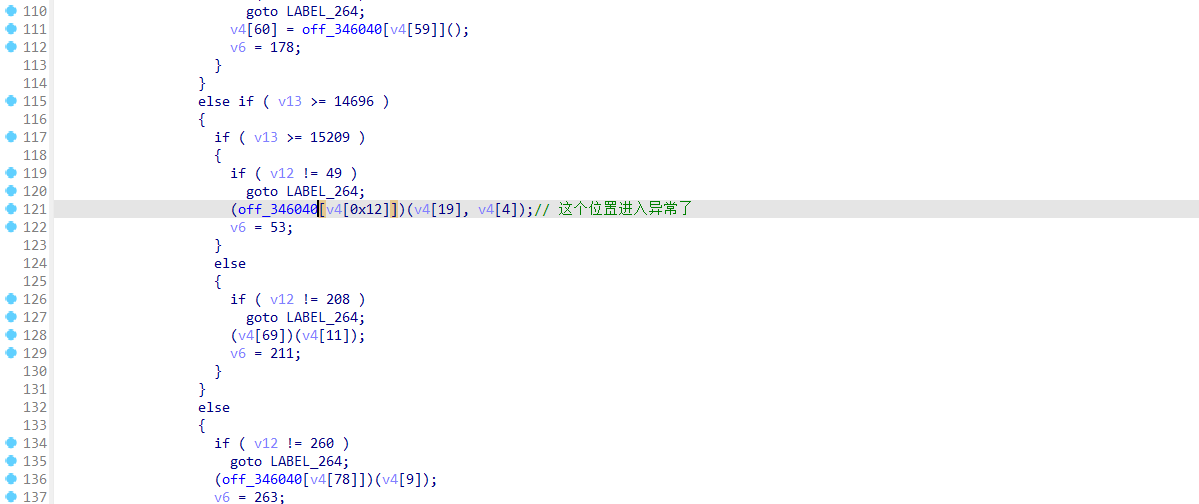

image-20241126231217854

off_345F20里放的都是函数地址,有点罕见这种.

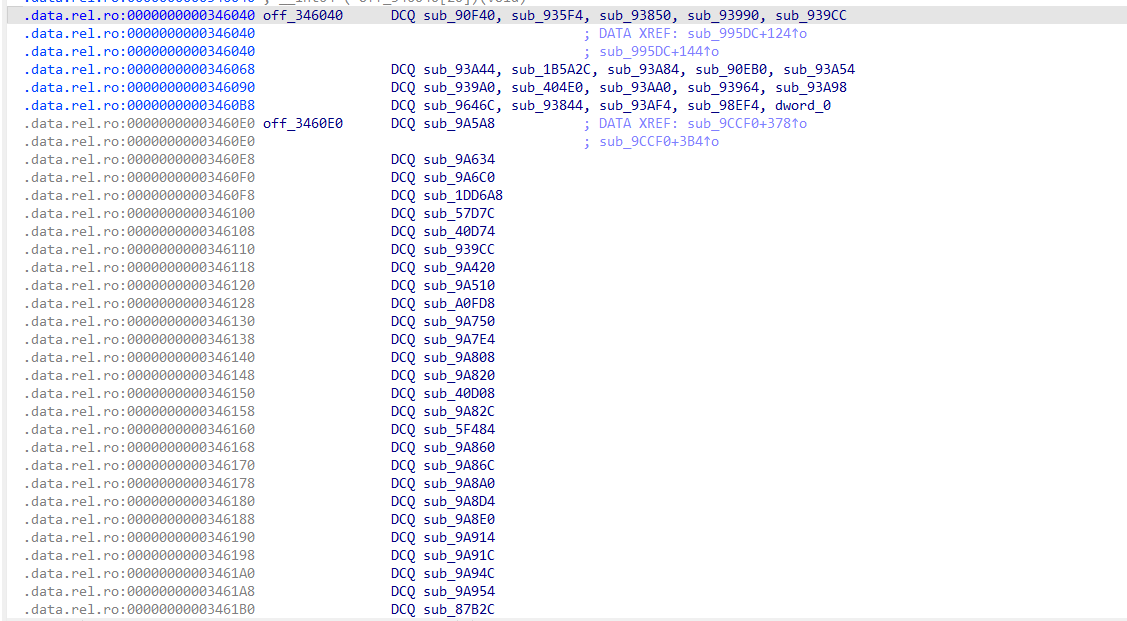

image-20241126231239173

复制出来搜索发现只有一处走向异常,之前尝试了不让他走到这个判断里面,有些困难

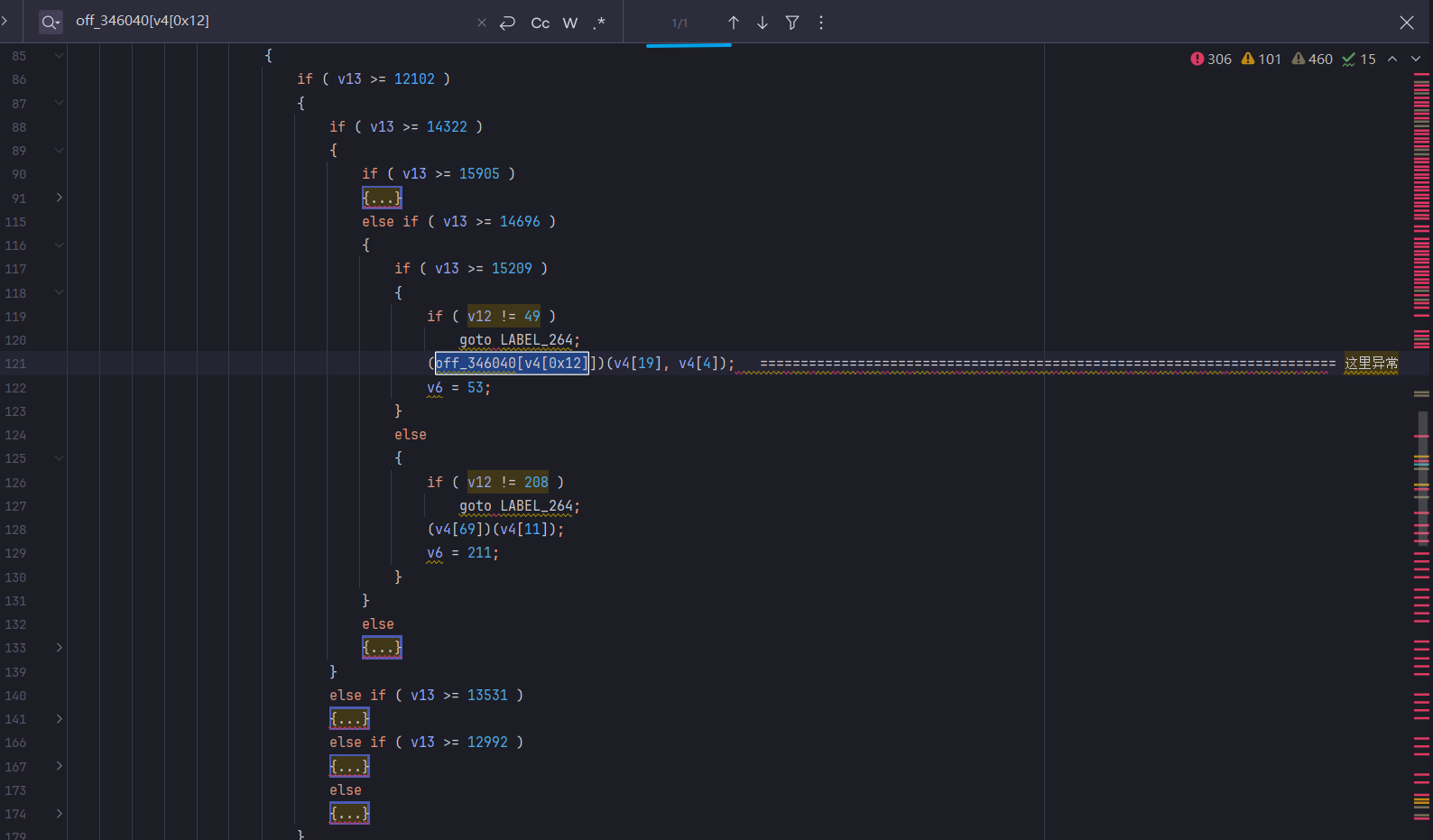

image-20241126231558702

最好的办法是把这个跳转直接nop掉

1
2
3
4
5
public void patch(){
    UnidbgPointer pointer = UnidbgPointer.pointer(emulator,module.base + 0x9A208);
    byte[] code = new byte[]{(byte) 0x1f, (byte) 0x20,(byte) 0x03, (byte) 0xD5};//  1F 20 03 D5  异常位置
    pointer.write(code);
}

运行

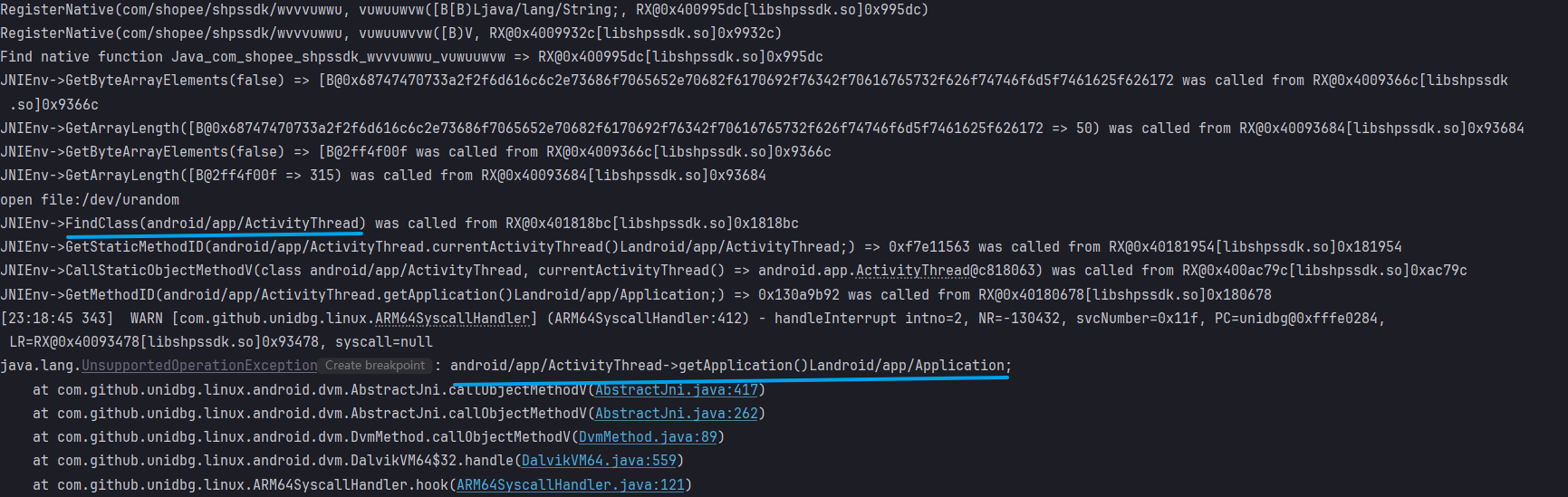

image-20241126231916020

进入到正常逻辑了,后续的补环境交给你相信也是信手拈来.

补环境代码中可能有东西参与了计算,需要注意,另外大部分结果由随机数构成,需要处理好哪些随机是对应的.走的是/dev/urandom

x-sap-ri算法

1
2
3
4
5
6
7
8
9
10
11
12
13
import random
import time

def generate_hex_string():
    hex_string = ''.join(random.choice('0123456789ABCDEF') for _ in range(44))
    hex_list = list(hex_string)
    hex_list[14] = '1'  # 第15位（索引从0开始）
    hex_list[17] = '1'  # 第18位（索引从0开始）
    return ''.join(hex_list)

timestamp = int(time.time()).to_bytes(4,byteorder='little').hex()
random_hex_string = timestamp+generate_hex_string()
print("x-sap-ri", random_hex_string)

正确结果

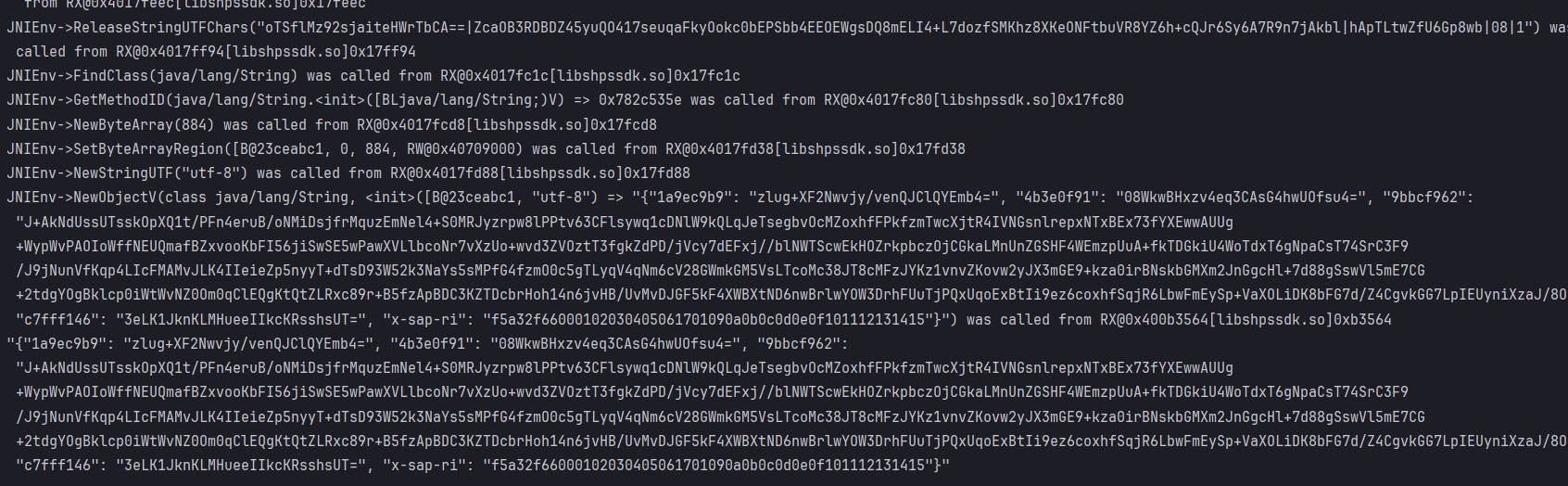

image-20241126233036721

不要觉得看上去很简单,想一想没有资料你能不能搞的出来? 后续预计3-4篇算法

后续这种简单的定位,脚本什么可能一笔带过了,默认都会了,我觉得这篇还是很详细的,后续算法远比这些复杂
