• [原创]某**购物APP设备风控SDK-mtop简单分析

一、引言

  • mtop风控SDK充当移动端和服务器之间的网关，为app应用提供了大量API接口，实现商品展示、下单、支付等功能的防护。
  • 学习研究意义
    防协议破解与改机：分析风控的设备采集、加密与签名机制是逆向分析的重点，了解其加密算法与参数生成逻辑能够帮助研究者防绕过限制，检测改机或直接构造合法请求等提供思路。
    防数据抓取与自动化操作：通过研究mtop请求，逆向分析人员可以更好地理App的风控逻辑，了解防实现自动化数据抓取、订单生成等操作机制。
    防风控绕过：逆向分析风控可以深入了解APP的风控策略，通过探究触发风控的条件和对应机制，找到潜在的绕过方法与学习防御方案。

二、工具与环境

工具：Frida、Charles、IDA pro9.0。
环境：Mac mini macOS 14.6.1、iphonex ios 14.8。

三、设备端执行流程

3.0、抓包分析

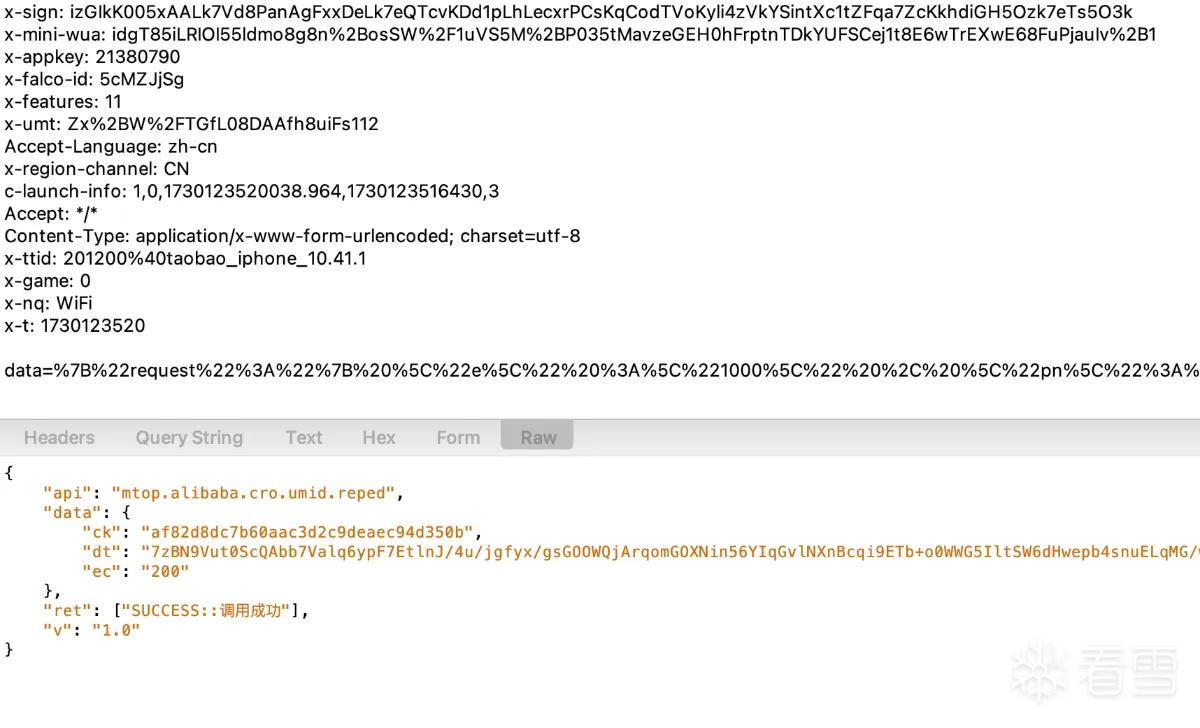

首先抓分析下请求参数都有哪些：

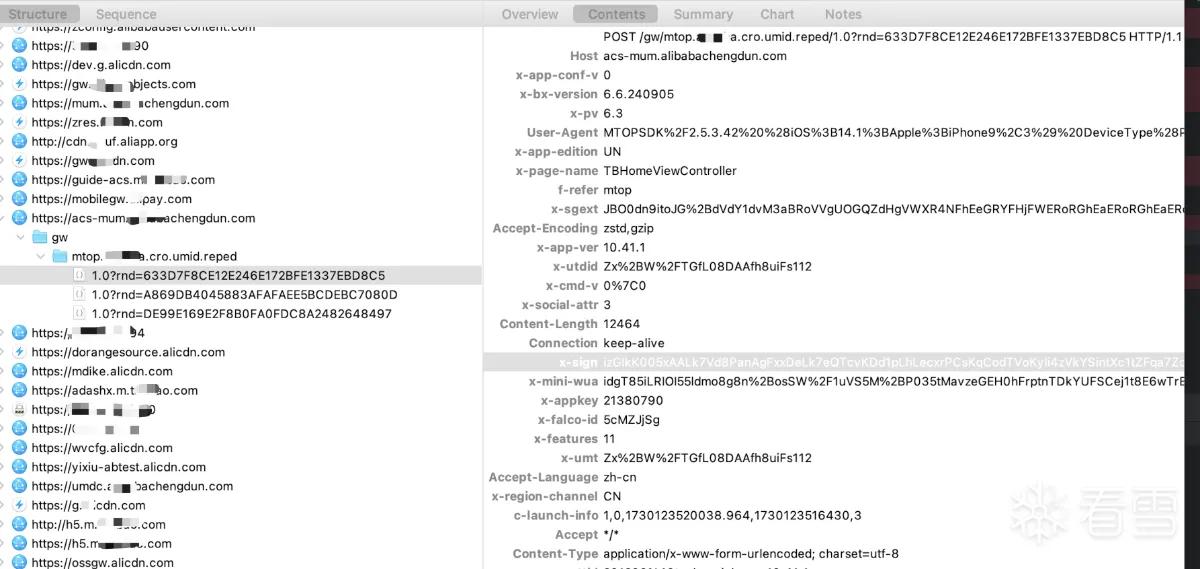

设备风控APP第一次启动时总共三次请求，第一次请求会返回一些风险特征与设备id(eeid)；

返回的data json中dt存放着风险特征与控制算法变化的逻辑指令、设备id(eeid)等重要信息;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
{
        "cdnScriptUrl": "http://cdn.ynuf.aliapp.org/u6vr/g9m6/1gkepoi",
        "cfg": {
                "trust": {
                        "modifiedtime": 1606735713,
                        "v": 174084,
                        "type1": "{\"en\":0}"
                },
                "e1002": {
                        "modifiedtime": 1719282753,
                        "v": 400052,
                        "type1": "{\"e1002\":{\"p\":1,\"s\":true,\"c\":[{\"s\":\"9a85\",\"k\":\"47b0\"},{\"s\":\"82a0\",\"k\":\"51b6\"}],\"z\":1},\"e1011\":{\"p\":1,\"s\":true,\"c\":[{\"s\":\"c99e\",\"k\":\"9a1d\"},{\"s\":\"4337\"},{\"s\":\"f983\"},{\"s\":\"5f0d\"},{\"s\":\"9a66\"},{\"s\":\"9a85\",\"k\":\"47b0\"},{\"s\":\"75f8\",\"k\":\"d54f\"},{\"s\":\"7e2d\",\"k\":\"14ee\"},{\"s\":\"82a0\",\"k\":\"51b6\"}],\"z\":7}}"
                },
                "e1011": {
                        "modifiedtime": 1700535253,
                        "v": 400011,
                        "type1": "{\"e1011\":{\"p\":1,\"z\":7,\"s\":true,\"c\":[{\"k\":\"9a1d\",\"s\":\"c99e\"},{\"k\":null,\"s\":\"4337\"},{\"k\":null,\"s\":\"f983\"},{\"k\":null,\"s\":\"5f0d\"},{\"k\":null,\"s\":\"9a66\"},{\"k\":\"da1a\",\"s\":\"c7b1\"}]}}"
                },
                "e1000": {
                        "modifiedtime": 1719282754,
                        "v": 400107,
                        "type1": "{\"e1000\":{\"p\":0,\"s\":true,\"z\":1},\"e1011\":{\"p\":1,\"s\":true,\"c\":[{\"s\":\"c99e\",\"k\":\"9a1d\"},{\"s\":\"4337\"},{\"s\":\"f983\"},{\"s\":\"9a85\",\"k\":\"47b0\"},{\"s\":\"75f8\",\"k\":\"d54f\"},{\"s\":\"7e2d\",\"k\":\"14ee\"}],\"z\":7}}"
                },
                "ocrt": {
                        "modifiedtime": 1635995243,
                        "v": 400001,
                        "type1": "14.0"
                },
                "applist": {
                        "modifiedtime": 1583808665,
                        "v": 116009,
                        "type1": "com.360buy.jdmobile,com.xunmeng.pinduoduo,com.vipshop.iphone,com.tencent.mqq,com.tencent.ww,com.tencent.xin,com.baidu.map,com.tencent.sosomap,ctrip.com,com.tuniu.app,com.qunar.iphoneclient8,com.qiyi.iphone,com.tencent.live4iphone,com.ss.iphone.ugc.Aweme,com.wuba.zhuanzhuan,com.ss.iphone.article.News,com.meituan.itakeaway,com.dianping.dpscope,com.meituan.imeituan,com.mmp.mmp040608"
                },
                "sgpt": {
                        "modifiedtime": 1727261154,
                        "v": 400090,
                        "type1": "{\"o\":\"QgIAA3b7uxQAcDYAB6vaNgE/ABk2Aj8aHjYDPx9oNgQ/KTI4BT8zPDYGPz1GNgc/R1A2CD9RWjYJP1tkNgo/Zf82CxMBCJk2DBMCDZk2DRMDnJk2DhMECJk2DxMFnJk2EBMG3Jk2ERMHDZk2EhMIfZk2ExMJ3Jk2FBMKCJk2FRMLjjYWEwyONhcTDY42GBMOjjYZEw+ONhoTEI42GxMRjjYcExKONh0TE442HhMUjjYfExUTFhMXExgTGRMaExsTHBMdEx42IDQENiETHyETIDYiEyHumTYjNAQTIDQEEyLPBMAUBz4TAAdJB4gH8we7EyPAGA==\",\"s\":\"QgEAA3j7uwAANgAHSQeIB/MHuwc+NgI0AjYDc2MFc6gFc6oFc2UFc/Urc7EFc6QFNgQdAJ0HJygN+QQLVb8OEwPLNgUTBP4FDRMDNgYTBSETAjYHB6sTAhMGzwTAFBMAEwfAGA==\"}"
                },
                "bp": {
                        "modifiedtime": 1675837757,
                        "v": 400004,
                        "type1": "[{\"b\":0,\"o\":59607428}]"
                },
                "e1004": {
                        "modifiedtime": 1726738032,
                        "v": 400104,
                        "type1": "{\"e1011\":{\"p\":1,\"s\":true,\"c\":[{\"s\":\"4337\"},{\"s\":\"f53f\",\"k\":\"ea2f\"},{\"s\":\"2109\",\"k\":\"b9de\"},{\"s\":\"5f0d\"},{\"s\":\"9a66\",\"k\":\"0eb2\"},{\"s\":\"9a85\",\"k\":\"47b0\"},{\"s\":\"75f8\",\"k\":\"d54f\"},{\"s\":\"7e2d\",\"k\":\"14ee\"},{\"s\":\"82a0\",\"k\":\"51b6\"}],\"z\":7},\"e1004\":{\"p\":1,\"s\":true,\"c\":[{\"s\":\"f983\"},{\"s\":\"c99e\",\"k\":\"9a1d\"},{\"s\":\"4337\"},{\"s\":\"ad62\",\"k\":\"0141\"},{\"s\":\"7e2d\",\"k\":\"14ee\"},{\"s\":\"5f0d\"},{\"s\":\"9a66\",\"k\":\"0eb2\"},{\"s\":\"9a85\",\"k\":\"47b0\"},{\"s\":\"82a0\",\"k\":\"51b6\"}],\"z\":7}}"
                },
                "RConfig": {
                        "modifiedtime": 1728641375,
                        "v": 400262,
                        "type1": "{\"gtaop\":0,\"hevent\":2,\"switch\":{\"r_64_0\":0,\"rc\":0,\"mach2\":1,\"ihook\":1,\"r_61_0\":0,\"ulib\":0,\"ier\":1,\"lnk\":0,\"its\":1,\"ist\":0}}"
                },
                "RList": {
                        "modifiedtime": 1595903663,
                        "v": 135019,
                        "type1": "{\"v\":1,\"sp\":{\"AWZ.dylib\":1,\"NZT.dylib\":1,\"ALS.dylib\":1,\"rstweak.dylib\":1,\"YOY.dylib\":1,\"iGrimace.dylib\":1,\"hdfaker.dylib\":1,\"NewDevice.dylib\":1,\"HookDevice.dylib\":1,\"zzhardChange.dylib\":1,\"deviceInfoChange.dylib\":1,\"FakeTweak.dylib\":1,\"setmobile.dylib\":1,\"amg.dylib\":1,\"TEMain.dylib\":2,\"TweakEx.dylib\":2,\"tweaktest.dylib\":2,\"MAServiceEnEx.dylib\":2,\"SimulateTouch.dylib\":2,\"TSTweak.dylib\":2,\"XXScreenShot.dylib\":2,\"GPSCheat.dylib\":2,\"GPSTravellerTweakProX.dylib\":2,\"LocationChanger.dylib\":4,\"TEGPS.dylib\":4,\"txytweak.dylib\":4,\"txyfakegps.dylib\":4,\"OTRLocation.dylib\":4,\"altweak.dylib\":4},\"so\":{\"v\":1,\"l\":[[\"/Applications/Cydia.app\",\"/usr/sbin/frida-server\",\"/usr/lib/libjailbreak.dylib\",\"/jb/libjailbreak.dylib\"],[\"/Applications/iGrimace.app\",\"/Applications/NZT.app\",\"/Applications/hdFaker.app\"],[\"/Applications/TouchElf.app\",\"/Applications/AutoTouch.app\",\"/Applications/TouchSprite.app\",\"/Applications/handjingling.app\"],[\"/Applications/tianxiayou.app\",\"/Applications/TianXiaYou.app\",\"/Applications/anylocation.app\",\"/Applications/OTRLocation.app\"]]}}"
                },
                "dmtop": {
                        "modifiedtime": 1689046187,
                        "v": 400017,
                        "type1": "1"
                },
                "crpt": {
                        "modifiedtime": 1727261147,
                        "v": 400021,
                        "type1": "QgIAA3b7uxQAcDYAB6vaNgE/ABk2Aj8aHjYDPx8oNgQ/KTI2BT8zPDYGPz1GNgfsd/R1A2CD9RWjYJP1tkNgo/Zf82CxMBCJk2DBMCDZk2DRMDnJk2DhMECJk2DxMFnJk2EBMG3Jk2ERMHDZk2EhMIfZk2ExMJ3Jk2FBMKCJk2FRMLjjYWEwyONhcTDY42GBMOjjYZEw+ONhoTEI42GxMRjjYcExKONh0TE442HhMUjjYfExUTFhMXExgTGRMaExsTHBMdEx42IDQENiETHyETIDYiEyHumTYjNAQTIDQEEyLPBMAUBz4TAAdJB4gH8we7EyPAGA=="
                },
                "hash": {
                        "modifiedtime": 1583809627,
                        "v": 118007,
                        "type1": "{\"p\":0,\"z\":1,\"s\":true,\"c\":[{\"k\":\"f471\",\"s\":\"5a7a\"},{\"k\":\"0174\",\"s\":\"5a7a\"},{\"k\":\"c07a\",\"s\":\"6932\"},{\"k\":\"d79b\",\"s\":\"5a7a\"},{\"k\":\"db95\",\"s\":\"8c64\"}]}"
                },
                "bcud": {
                        "modifiedtime": 1669186615,
                        "v": 400007,
                        "type1": "1"
                }
        },
        "cmd": 1011,
        "eeid": "M1gt9f6skwzyWoMI9Yoo94e74rrLKS+JcxHSI+M0r8K/ioZ4rfdDSnOS7x/QeoQwouayVF0TMA6AAyJ7bgAy7jn",
        "rmdata": "eyJybWlkIjoiQnh8WGtDRndqd1c2NU7abklOdjdXdmN3RlJEVVRSK2hDQ3d3b0l6aVFROD0iLCJiaW5hcnkiOiIwIiwidmVyc2lvbiI6ImY2NWQxNWNjNzg3ODg1ZmE1YzAwMDMzNjgwNDlmNjgzIn0=",
        "token": "FtwBvGFLPBAelRKS0/2NWAmzZgeyXyc9"
}

3.1、风险检测

三次请求中都有会扫描设备的风险特征，字段名为r_数字_数字(r_1_0)
采集方式主要为调用svc指令；

1
2
3
4
5
6
7
8
9
__uvm_call_registry_llc_do_syscall_sub_1026F4850
__text:00000001048898DC                         svc_sub_1026CD8DC
__text:00000001048898DC
__text:00000001048898DC                         arg_0=  0
__text:00000001048898DC
__text:00000001048898DC F0 03 40 F9             LDR             X16, [SP,#arg_0]
__text:00000001048898E0 01 00 00 D4             SVC             0
__text:00000001048898E4 43 00 00 54             B.CC            locret_1048898EC
__text:00000001048898E8 7A 9B 00 14             B               sub_1048B06D0

检测越狱风险特征:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
MEMORY:0000000124F46652 2F 4C 69 62 72 61 72 79…aLibraryMobiles_1 DCB "/Library/MobileSubstrate",0
MEMORY:0000000124F4666B 2F 41 70 70 6C 69 63 61…aApplicationsCy_0 DCB "/Applications/Cydia.app",0
MEMORY:0000000124F46683 2F 41 70 70 6C 69 63 61…aApplicationsSi DCB "/Applications/Sileo.app",0
MEMORY:0000000124F4669B 2F 76 61 72 2F 6A 62 2F…aVarJbApplicati DCB "/var/jb/Applications/Sileo-Nightly.app",0
MEMORY:0000000124F466C2 2F 76 61 72 2F 6A 62 2F…aVarJbApplicati_0 DCB "/var/jb/Applications/Sileo-Beta.app",0
MEMORY:0000000124F466E6 2F 76 61 72 2F 6A 62 2F…aVarJbApplicati_1 DCB "/var/jb/Applications/Cydia.app",0
MEMORY:0000000124F46705 2F 76 61 72 2F 6A 62 2F…aVarJbApplicati_2 DCB "/var/jb/Applications/Sileo.app",0
MEMORY:0000000124F46724 2F 41 70 70 6C 69 63 61…aApplicationsZe DCB "/Applications/Zebra.app",0
MEMORY:0000000124F4673C 2F 75 73 72 2F 6C 69 62…aUsrLibexecCydi DCB "/usr/libexec/cydia",0
MEMORY:0000000124F4674F 2F 75 73 72 2F 6C 69 62…aUsrLibexecZebr DCB "/usr/libexec/zebra",0
MEMORY:0000000124F46762 2F 75 73 72 2F 6C 69 62…aUsrLibexecFilz DCB "/usr/libexec/filza",0
MEMORY:0000000124F46775 2F 75 73 72 2F 6C 69 62…aUsrLibexecSubs DCB "/usr/libexec/substrated",0
MEMORY:0000000124F4678D 2F 75 73 72 2F 6C 69 62…aUsrLibexecSubs_0 DCB "/usr/libexec/substituted",0
MEMORY:0000000124F467A6 2F 65 74 63 2F 61 70 74…aEtcApt_1 DCB "/etc/apt",0
MEMORY:0000000124F467AF 2F 65 74 63 2F 64 70 6B…aEtcDpkg DCB "/etc/dpkg",0
MEMORY:0000000124F467B9 2F 65 74 63 2F 73 73 68…aEtcSsh DCB "/etc/ssh",0
MEMORY:0000000124F467C2 2F 4C 69 62 72 61 72 79…aLibraryTweakin DCB "/Library/TweakInject",0
MEMORY:0000000124F467D7 2F 75 73 72 2F 62 69 6E…aUsrBinCycript DCB "/usr/bin/cycript",0
MEMORY:0000000124F467E8 2F 75 73 72 2F 6C 69 62…aUsrLibLibjailb DCB "/usr/lib/libjailbreak.dylib",0
MEMORY:0000000124F46804 2F 75 73 72 2F 6C 69 62…aUsrLibLibhooke DCB "/usr/lib/libhooker.dylib",0
MEMORY:0000000124F4681D 2F 75 73 72 2F 6C 69 62…aUsrLibLibsubst DCB "/usr/lib/libsubstitute.dylib",0
MEMORY:0000000124F4683A 2F 75 73 72 2F 6C 69 62…aUsrLibTweakinj DCB "/usr/lib/TweakInject",0
MEMORY:0000000124F4684F 2F 75 73 72 2F 62 69 6E…aUsrBinDebugser DCB "/usr/bin/debugserver",0
MEMORY:0000000124F46864 2F 75 73 72 2F 6C 69 62…aUsrLibexecAfc2 DCB "/usr/libexec/afc2d",0
MEMORY:0000000124F46877 2F 75 73 72 2F 62 69 6E…aUsrBinSsh DCB "/usr/bin/ssh",0
MEMORY:0000000124F46884 2F 75 73 72 2F 62 69 6E…aUsrBinDpkg DCB "/usr/bin/dpkg",0
MEMORY:0000000124F46892 2F 75 73 72 2F 62 69 6E…aUsrBinAptKey DCB "/usr/bin/apt-key",0
MEMORY:0000000124F468A3 2F 75 73 72 2F 62 69 6E…aUsrBinCynject DCB "/usr/bin/cynject",0
MEMORY:0000000124F468B4 2F 75 73 72 2F 6C 6F 63…aUsrLocalBinDro DCB "/usr/local/bin/dropbear",0
MEMORY:0000000124F468CC 2F 65 6C 65 63 74 72 61…aElectraInjectC DCB "/electra/inject_criticald",0
MEMORY:0000000124F468E6 2F 76 61 72 2F 62 69 6E…aVarBinpackLoad DCB "/var/binpack/loaderd_hook",0
MEMORY:0000000124F46900 2F 4C 69 62 72 61 72 79…aLibraryPrefere DCB "/Library/PreferenceBundles/LibertyPref.bundle",0
MEMORY:0000000124F4692E 2F 4C 69 62 72 61 72 79…aLibraryPrefere_0 DCB "/Library/PreferenceBundles/ShadowPreferences.bundle",0
MEMORY:0000000124F46962 2F 4C 69 62 72 61 72 79…aLibraryPrefere_1 DCB "/Library/PreferenceBundles/ABypassPrefs.bundle",0
MEMORY:0000000124F46991 2F 4C 69 62 72 61 72 79…aLibraryPrefere_2 DCB "/Library/PreferenceBundles/FlyJBPrefs.bundle",0
MEMORY:0000000124F469BE 2F 4C 69 62 72 61 72 79…aLibraryPrefere_3 DCB "/Library/PreferenceBundles/HestiaPrefs.bundle",0
MEMORY:0000000124F469EC 2F 4C 69 62 72 61 72 79…aLibraryPrefere_4 DCB "/Library/PreferenceBundles/KernBypassPrefs.bundle",0
MEMORY:0000000124F46A1E 2F 4C 69 62 72 61 72 79…aLibraryPrefere_5 DCB "/Library/PreferenceBundles/Avatar.bundle",0
MEMORY:0000000124F46A47 2F 65 74 63 2F 70 72 6F…aEtcProfileDCor DCB "/etc/profile.d/coreutils.sh",0
MEMORY:0000000124F46A63 2F 2E 69 6E 73 74 61 6C…aInstalledUnc0v DCB "/.installed_unc0ver",0
MEMORY:0000000124F46A77 2F 70 72 69 76 61 74 65…aPrivateVarMobi DCB "/private/var/mobile/staged_system_apps",0
MEMORY:0000000124F46A9E 2F 70 72 69 76 61 74 65…aPrivateVarMobi_0 DCB "/private/var/mobile/mobile",0
MEMORY:0000000124F46AB9 2F 64 65 76 2F 66 61 6B…aDevFakevar DCB "/dev/fakevar",0
MEMORY:0000000124F46AC6 2F 74 6D 70 2F 76 6E 6F…aTmpVnodememTxt DCB "/tmp/vnodeMem.txt",0
MEMORY:0000000124F46AD8 2F 75 73 72 2F 6C 69 62…aUsrLibEllekitM DCB "/usr/lib/ellekit/MobileSafety.dylib",0
MEMORY:0000000124F46AFC 2F 76 61 72 2F 6A 62 2F…aVarJbUsrLibTwe DCB "/var/jb/usr/lib/TweakInject",0
MEMORY:0000000124F46B18 2F 76 61 72 2F 6A 62 2F…aVarJbUsrLibEll DCB "/var/jb/usr/lib/ellekit/MobileSafety.dylib",0
MEMORY:0000000124F46B43 2F 76 61 72 2F 6A 62 2F…aVarJbLibraryMo DCB "/var/jb/Library/MobileSubstrate/DynamicLibraries",0
MEMORY:0000000124F46B74 2F 76 61 72 2F 6A 62 2F…aVarJbInstalled DCB "/var/jb/.installed_dopamine",0
MEMORY:0000000124F46B90 2F 76 61 72 2F 6A 62 2F…aVarJbBasebinJb DCB "/var/jb/basebin/jbctl",0
MEMORY:0000000124F46BA6 2F 76 61 72 2F 6A 62 2F…aVarJbUsrLibTwe_0 DCB "/var/jb/usr/lib/TweakLoader.dylib",0
MEMORY:0000000124F46BC8 2F 76 61 72 2F 6A 62 2F…aVarJbPrepBoots DCB "/var/jb/prep_bootstrap.sh",0
MEMORY:0000000124F46BE2 2F 65 74 63 2F 72 63 2E…aEtcRcDLibhooke DCB "/etc/rc.d/libhooker",0
MEMORY:0000000124F46BF6 2F 76 61 72 2F 6A 62 2F…aVarJbEtcRcDLib DCB "/var/jb/etc/rc.d/libhooker",0
MEMORY:0000000124F46C11 2F 41 70 70 6C 69 63 61…aApplications DCB "/Applications",0
MEMORY:0000000124F46C1F 2F 4C 69 62 72 61 72 79…aLibraryRington DCB "/Library/Ringtones",0
MEMORY:0000000124F46C32 2F 4C 69 62 72 61 72 79…aLibraryWallpap DCB "/Library/Wallpaper",0
MEMORY:0000000124F46C45 5F 4D 53 53 61 66 65 4D…aMssafemode DCB "_MSSafeMode",0
MEMORY:0000000124F46C51 73 75 62 73 74 69 74 75…aSubstitute DCB "substitute",0
MEMORY:0000000124F46C5C 4A 42 52 4F 4F 54 00    aJbroot DCB "JBROOT",0
MEMORY:0000000124F46C63 4A 42 52 41 4E 44 00    aJbrand DCB "JBRAND",0
MEMORY:0000000124F46C6A 4A 42 5F 52 4F 4F 54 5F…aJbRootPath DCB "JB_ROOT_PATH",0
MEMORY:0000000124F46C77 4A 42 5F 53 41 4E 44 42…aJbSandboxExten DCB "JB_SANDBOX_EXTENSIONS",0
MEMORY:0000000124F46C8D 63 79 64 69 61 3A 2F 2F…aCydiaInstalled DCB "cydia://installed",0
MEMORY:0000000124F46C9F 73 69 6C 65 6F 3A 2F 2F…aSileo DCB "sileo://",0
MEMORY:0000000124F46CA8 7A 62 72 61 3A 2F 2F 00 aZbra DCB "zbra://",0
MEMORY:0000000124F46CB0 66 69 6C 7A 61 3A 2F 2F…aFilza DCB "filza://",0
MEMORY:0000000124F46CB9 61 63 74 69 76 61 74 6F…aActivator DCB "activator://",0

检测frida改机等：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MEMORY:000000012779091A aApplicationsIg DCB "/Applications/iGrimace.app",0
MEMORY:0000000127790935 aApplicationsNz DCB "/Applications/NZT.app",0
MEMORY:000000012779094B aApplicationsHd DCB "/Applications/hdFaker.app",0
MEMORY:0000000127790965 aApplicationsMo DCB "/Applications/MobileAnjian.app",0
MEMORY:0000000127790984 aApplicationsTo DCB "/Applications/TouchElf.app",0
MEMORY:000000012779099F aApplicationsAu DCB "/Applications/AutoTouch.app",0
MEMORY:00000001277909BB aApplicationsTo_0 DCB "/Applications/TouchSprite.app",0
MEMORY:00000001277909D9 aApplicationsTo_1 DCB "/Applications/TouchSpritePe.app",0
MEMORY:00000001277909F9 aApplicationsHa DCB "/Applications/handjingling.app",0
MEMORY:0000000127790A18 aApplicationsTi DCB "/Applications/tianxiayou.app",0
MEMORY:0000000127790A35 aApplicationsTi_0 DCB "/Applications/TianXiaYou.app",0
MEMORY:0000000127790A52 aApplicationsAn DCB "/Applications/anylocation.app",0
MEMORY:0000000127790A70 aApplicationsOt DCB "/Applications/OTRLocation.app",0
MEMORY:00000002822B0480 aApplicationsCy_1 DCB "/Applications/Cydia.app",0
MEMORY:00000002822B04A0 aUsrSbinFridaSe DCB "/usr/sbin/frida-server",0
MEMORY:0000000283671170 aLibraryMobiles_2 DCB "/Library/MobileSubstrate/MobileSubstrate.dylib",0
"/Library/LaunchDaemons/re.frida.server.plist"

还有很多，比如是否dump、重签名、注入、frida、hook等，有兴趣的可自行研究。
3.2、设备采集
设备信息采集可以分为三种方式：
oc方法采集：

1
2
3
4
5
6
UTDevice
ONI_FindClass
utdid
ONI_GetStaticMethodID
ONI_CallStaticObjectMethod
ONI_GetStringUTFcString

c方法采集:

1
open、read、opendir readdir等

自定义方法采集:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
llc_do_syscall  0x0000000000000152   SYS_stat64
__text:00000001048898DC                         svc_sub_1026CD8DC
__text:00000001048898DC
__text:00000001048898DC                         arg_0=  0
__text:00000001048898DC
__text:00000001048898DC F0 03 40 F9             LDR             X16, [SP,#arg_0]
__text:00000001048898E0 01 00 00 D4             SVC             0
__text:00000001048898E4 43 00 00 54             B.CC            locret_1048898EC
__text:00000001048898E8 7A 9B 00 14             B               sub_1048B06D0

MEMORY:000000011553502C 2F 76 61 72 2F 6D 6F 62+aVarMobileMedia DCB "/var/mobile/Media/DCIM/100APPLE",0
MEMORY:000000011553504C 2F 53 79 73 74 65 6D 2F+aSystemLibraryP DCB "/System/Library/Pearl/ReferenceFrames/reference-sparse.plist",0
MEMORY:0000000115535089 2F 53 79 73 74 65 6D 2F+aSystemLibraryP_0 DCB "/System/Library/Pearl/ReferenceFrames/reference-dense.plist",0
MEMORY:00000001155350C5 2F 53 79 73 74 65 6D 2F+aSystemLibraryP_1 DCB "/System/Library/Pearl/ReferenceFrames/reference-sparseLP.plist",0

//格式化采集内容
%ld%c %ld.%ld%c

3.3、VMP简要分析

a、VM入口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
__text:000000010732D1D0                 STP             X29, X30, [SP,#-0x10+var_s0]!
__text:000000010732D1D4                 MOV             X29, SP
__text:000000010732D1D8                 SUB             SP, SP, #0x100
__text:000000010732D1DC                 STP             X20, X19, [SP,#0x100+var_70]
__text:000000010732D1E0                 STP             X22, X21, [SP,#0x100+var_80]
__text:000000010732D1E4                 STP             X24, X23, [SP,#0x100+var_90]
__text:000000010732D1E8                 STP             X26, X25, [SP,#0x100+var_A0]
__text:000000010732D1EC                 STP             X28, X27, [SP,#0x100+var_B0]
__text:000000010732D1F0                 STP             X15, X14, [SP,#0x100+var_C0]
__text:000000010732D1F4                 STP             X13, X12, [SP,#0x100+var_D0]
__text:000000010732D1F8                 STP             X11, X10, [SP,#0x100+var_E0]
__text:000000010732D1FC                 STP             X9, X8, [SP,#0x100+var_F0]
__text:000000010732D200                 MOV             X26, X0
__text:000000010732D204                 MOV             X28, X1
__text:000000010732D208                 MOV             X19, X2
__text:000000010732D20C                 MOV             X27, X19
__text:000000010732D210                 MOV             X24, X4
__text:000000010732D214                 MOV             X20, X5
__text:000000010732D218                 MOV             X25, X6
__text:000000010732D21C                 ADD             X21, X24, #0x100
__text:000000010732D220                 MOV             X22, #0
__text:000000010732D224                 MOV             X23, #0
__text:000000010732D228                 MOV             X23, X27
__text:000000010732D22C                 ADD             X27, X27, X3,LSL#4
__text:000000010732D230                 LDR             W8, [X27]
__text:000000010732D234                 LDR             X8, [X20,X8,LSL#3]
__text:000000010732D238                 STR             X27, [X28,#8]
__text:000000010732D23C                 BR              X8

b、VM出口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
_text:000000010732D328                 LDR             X11, [X24,#0xF0]
__text:000000010732D32C                 LDP             X9, X10, [X24,#0xC0]
__text:000000010732D330                 STP             X9, X10, [X24,#0x40]
__text:000000010732D334                 LDP             X9, X10, [X24,#0xD0]
__text:000000010732D338                 STP             X9, X10, [X24,#0x50]
__text:000000010732D33C                 LDP             X9, X10, [X24,#0xE0]
__text:000000010732D340                 STP             X9, X10, [X24,#0x60]
__text:000000010732D344                 LDR             X9, [X24,#0xF8]
__text:000000010732D348                 STR             X9, [X24,#0x78]
__text:000000010732D34C                 MOV             X23, X22
__text:000000010732D350                 LDP             X9, X10, [X11]
__text:000000010732D354                 STP             X9, X10, [X24,#0x80]
__text:000000010732D358                 LDP             X9, X10, [X11,#0x10]
__text:000000010732D35C                 STP             X9, X10, [X24,#0x90]
__text:000000010732D360                 LDP             X9, X10, [X11,#0x20]
__text:000000010732D364                 STP             X9, X10, [X24,#0xA0]
__text:000000010732D368                 LDP             X9, X10, [X11,#0x30]
__text:000000010732D36C                 STP             X9, X10, [X24,#0xB0]
__text:000000010732D370                 LDP             X9, X10, [X11,#0x40]
__text:000000010732D374                 STP             X9, X10, [X24,#0xC0]
__text:000000010732D378                 LDP             X9, X10, [X11,#0x50]
__text:000000010732D37C                 STP             X9, X10, [X24,#0xD0]
__text:000000010732D380                 LDP             X9, X10, [X11,#0x60]
__text:000000010732D384                 STP             X9, X10, [X24,#0xE0]
__text:000000010732D388                 LDP             X9, X10, [X11,#0x70]
__text:000000010732D38C                 STP             X9, X10, [X24,#0xF0]
__text:000000010732D390                 LDP             X9, X10, [X11,#0x80]
__text:000000010732D394                 STP             X9, X10, [X24,#0x30]
__text:000000010732D398                 LDR             X22, [X11,#0x78]
__text:000000010732D39C                 STR             X11, [X24,#0x70]
__text:000000010732D3A0                 LDR             X9, [X24,#0x78]
__text:000000010732D3A4                 ADD             X27, X9, #0x10
__text:000000010732D3A8                 LDR             W8, [X27]
__text:000000010732D3AC                 LDR             X8, [X20,X8,LSL#3]
__text:000000010732D3B0                 STR             X27, [X28,#8]
__text:000000010732D3B4                 BR              X8

c、handle
handle大概有70个左右，基本指令都模拟了，但是handle没有混淆，分析还是比较容易能看出是模拟什么指令，比如下面handle；其它的类似；

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
__text:000000010732D908 EOR_sub_1026C9908
__text:000000010732D908                 LDRB            W1, [X27,#5]
__text:000000010732D90C                 LDRB            W2, [X27,#6] ; 取vm寄器编号
__text:000000010732D910                 LDR             X1, [X24,X1,LSL#3]
__text:000000010732D914                 LDR             X2, [X24,X2,LSL#3]
__text:000000010732D918                 LDRB            W0, [X27,#7]
__text:000000010732D91C                 EOR             X1, X1, X2 ; eor加密
__text:000000010732D920                 AND             X1, X1, #0xFFFFFFFF
__text:000000010732D924                 STR             X1, [X24,X0,LSL#3]
__text:000000010732D928                 LDR             W8, [X27,#0x10]!
__text:000000010732D92C                 LDR             X8, [X20,X8,LSL#3]
__text:000000010732D930                 STR             X27, [X28,#8]
__text:000000010732D934                 BR              X8


__text:000000010697AA30                               ; r9, r25, r27
__text:000000010697AA30
__text:000000010697AA30                               _ADD_sub_10B2CAA30
__text:000000010697AA30 61 17 40 39                   LDRB            W1, [X27,#5]
__text:000000010697AA34 62 1B 40 39                   LDRB            W2, [X27,#6]  ; 取vm寄器编号
__text:000000010697AA38 01 7B 61 F8                   LDR             X1, [X24,X1,LSL#3]
__text:000000010697AA3C 02 7B 62 F8                   LDR             X2, [X24,X2,LSL#3]
__text:000000010697AA40 60 1F 40 39                   LDRB            W0, [X27,#7]
__text:000000010697AA44 21 00 02 8B                   ADD             X1, X1, X2
__text:000000010697AA48 01 7B 20 F8                   STR             X1, [X24,X0,LSL#3]
__text:000000010697AA4C 68 0F 41 B8                   LDR             W8, [X27,#0x10]! ; handle index
__text:000000010697AA50 88 7A 68 F8                   LDR             X8, [X20,X8,LSL#3]
__text:000000010697AA54 9B 07 00 F9                   STR             X27, [X28,#8]
__text:000000010697AA58 00 01 1F D6                   BR              X8            ; index
__text:000000010697AA58

3.4、加密流程分析

采集设备信息后就是加密上报，加密流程比较复杂，分为单字段加密，分段加密，整体加密，且每一个分段的加密算法还不一样，下面只简单说下流程，详细的可自行分析。
以采集mac地址为例，原始数据：

1
2
00000002817806A0  37 38 3A 39 31 3A 32 33  3A 34 35 3A 36 33 3A 34  78:91:23:45:63:4
00000002817806B0  35
第一层加密

a、生成随数为key

1
00000319

b、第一层加密，单个字节加密

1
2
3
4
key "00000319" index下标取值 5-》0000000000000033
000000000000003A ADD 0000000000000033 = 000000000000006D
000000000000006D ADD FFFFFFFFFFFFFFC0 = 000000000000002D
000000000000002D ADD 0000000000000020 = 000000000000004D  加密后

第二层加密
a、key为固定值

1
02 00 00 00 00 00 00 00

b、加密过程

1
2
3
4
5
数据长度000000000000000B AND 0000000000000003 = 0000000000000003
02 00 00 00 00 00 00 00 //与后下标取key值(下标0x3) 0000000000000000
0000000000000000 EOR 0000000000000040 = 0000000000000040//xor加密
加密后与固定字段key名组合
35 33 66 62 34 39 33 32  59 3C 5E 40 00 00 00 00  53fb4932Y<^@....

c、加密完后将所有字段组合，拼接组合字段，将多个字段拼接组合在一起；
第三层加密
a、组合后设备数据分成多组加密

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/组合后设备数据xor加密
00000000536D7261 XOR 000000000AAE8E7A = 0000000059C3FC1B
000000000017473D ORR 0000000005400000 = 000000000557473D
000000000000074F XOR 0000000005574072 = 000000000557473D
00000000000BA39E ORR 0000000082A00000 = 0000000082ABA39E
00000000596D5721 XOR 0000000082ABA39E = 00000000DBC6F4BF
000000000015D1CF ORR 0000000041400000 = 000000004155D1CF
0000000000000011 XOR 000000004155D1CF = 000000004155D1DE
00000000000AE8E7 ORR 00000000A0A00000 = 00000000A0AAE8E7
0000000064656362 XOR 00000000A0AAE8E7 = 00000000C4CF8B85
00000000C4CF8B85 LSR 000000000000000A = 00000000003133E2
0000000005574072 LSL 0000000000000016 = 000000001C800000
00000000003133E2 ORR 000000001C800000 = 000000001CB133E2
0000000059C3FC1B LSR 000000000000000A = 00000000001670FF
00000000DBC6F4BF LSL 0000000000000016 = 000000002FC00000
000000002FC00000 ORR 00000000001670FF = 000000002FD670FF
0000000005574072 LSR 000000000000000A = 00000000000155D0
000000004155D1DE LSL 0000000000000016 = 0000000077800000
0000000077800000 ORR 00000000000155D0 = 00000000778155D0
00000000DBC6F4BF LSR 000000000000000A = 000000000036F1BD
00000000C4CF8B85 LSL 0000000000000016 = 00000000E1400000
00000000E1400000 ORR 000000000036F1BD = 00000000E176F1BD

b、数据分段不同类型：

1
0x16、0x17、0x18、0x15、0x14

不同类型加密略有不同；
c、不同分段数据加密完后再组合进行随机数xor加密;
d、base64加密后与固定字符串(v0001ipx234001)组合;

第四层加密

a、将上面加密后数据组合json

1
2
3
String es = v0001ipx234001 + Base64.encodeToString(encBytes);
JsonObject jsonet = new JsonObject();
jsonet.addProperty("es", es);

b、压缩组合后json;
c、AES加密压缩后数据;
d、base64加密aes加密后数据做为请求体上报；

四、最后

总的来说mtop风控SDK代码保护能力还是比较强的，签名算法与本地加密算法流程复杂度比较高，协议还原时间成本较高且存在动态下发更算法逻辑，如果站在攻击方的来看的话可能改机方案成本相对较轻的。
本次分析从中也学到一些不错的防御点：
a、常见libc.so中的字符串操作函数在VMP中实现，strlen，strcpy，memset等。
b、自己管理自己的内存结构。
c、vm流程混淆，加入一些与真实逻辑无关的运算。
d、动态调用内部方法，方法地址加密存放，调用时地址动态解密
e、采集字段分成10组,每组分不同算法加密且算由服务器端控制算法变化。
f、加密算法白盒且放在VMP中计算加密逻辑
