学习参考：Reversing C++ programs with IDA pro and Hex-rays

序

话不多说，看效果：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

bool __fastcall cocos2d::LuaStack::setCai(cocos2d::LuaStack *this, const char *a2, const char *a3, const char *a4) {   _BOOL8 result; // x0   size_t v8; // w26   size_t v9; // w24   size_t v10; // w22   void *v11; // x0   void *v12; // x0   void *v13; // x0     (*(void (__fastcall **)(cocos2d::LuaStack *))(*(_QWORD *)this + 240LL))(this);   result = a4 != 0LL;   if ( a3 != 0LL && result && a2 )   {     v8 = strlen(a2);     v9 = strlen(a3);     v10 = strlen(a4);     v11 = malloc(v8);     *((_QWORD *)this + 6) = v11;     memcpy(v11, a2, v8);     *((_DWORD *)this + 14) = v8;     v12 = malloc(v9);     *((_QWORD *)this + 8) = v12;     memcpy(v12, a3, v9);     *((_DWORD *)this + 18) = v9;     v13 = malloc(v10);     *((_QWORD *)this + 10) = v13;     memcpy(v13, a4, v10);     *((_DWORD *)this + 22) = v10;     result = 1LL;     *((_BYTE *)this + 44) = 1;   }   else   {     *((_BYTE *)this + 44) = 0;   }   return result; }

修复后

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

bool __fastcall cocos2d::LuaStack::setCai(         cocos2d::LuaStack *this,         const char *xxteaKey,         const char *xxteaSign,         const char *xorKey) {   _BOOL8 result; // x0   size_t v8; // w26   size_t v9; // w24   size_t v10; // w22   char *v11; // x0   char *v12; // x0   char *v13; // x0     this->cleanupXXTEAKeyAndSign(this);   result = xorKey != 0LL;   if ( xxteaSign != 0LL && result && xxteaKey )   {     v8 = strlen(xxteaKey);     v9 = strlen(xxteaSign);     v10 = strlen(xorKey);     v11 = (char *)malloc(v8);     this->_xxteaKey = v11;     memcpy(v11, xxteaKey, v8);     this->_xxteaKeyLen = v8;     v12 = (char *)malloc(v9);     this->_xxteaSign = v12;     memcpy(v12, xxteaSign, v9);     this->_xxteaSignLen = v9;     v13 = (char *)malloc(v10);     this->_xorKey = v13;     memcpy(v13, xorKey, v10);     this->_xorKeyLen = v10;     result = 1LL;     this->_xxteaEnabled = 1;   }   else   {     this->_xxteaEnabled = 0;   }   return result; }

---

破

开始之前，让我们先做套小学二年级自测题（此处非游戏代码，仅用于回忆知识）：

考试环境：Debian GNU/Linux 12 (bookworm)，g++ (Debian 12.2.0-14) 12.2.0，x86_64。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

#include <iostream> using namespace std;   struct Base {     Base(int a, long b) : m_a(a), m_b(b) {}     int m_a;     virtual void print() { cout << "m_a = " << m_a << ", m_b = " << m_b << endl; }     long m_b;     virtual ~Base() { cout << "~Base() called" << endl; } };   struct Derived : public Base {     Derived(int a, long b, int c) : Base(a, b), m_c(c) {}     virtual ~Derived() { cout << "~Derived() called" << endl; }     void print() { cout << "m_a = " << m_a << ", m_b = " << m_b << ", m_c = " << m_c << endl; }     int m_c; };   int main() {     Derived d(1, 2, 3);     Base *pb = &d;     cout << sizeof(d) << endl;     cout << *(int *)((long *)pb + 3) << endl;     void (Base::*func)() = &Base::print;     (pb->*func)();     ((void (*)())*(long *)*(long *)&d)();     pb = new Derived(4, 5, 6);     cout << (*(long *)&d == *(long *)pb) << endl;     delete pb;     cout << "---- 楚河汉界 ----" << endl; }

问题是：请给出输出结果。
做完了吗，揭晓答案：

1 2 3 4 5 6 7 8 9 10

32 3 m_a = 1, m_b = 2, m_c = 3 m_a = 0, m_b = 0, m_c = 0 1 ~Derived() called ~Base() called ---- 楚河汉界 ---- ~Derived() called ~Base() called

如果您都做对了，那您可以直接跳到下个章节了，否则，您需要恶补以下知识点：

• 内存对齐
• 类对象的大小（内存布局）
• 虚函数表指针
• 虚函数表

限于篇幅，这里就不展开写了。
对本文而言，核心就是要弄懂如何通过指针访问数据成员及调用虚函数。

---

Q

通过上一章的回顾，您可能已经自信满满了，但是先别高兴太早，您和编译器的理解方式未必就是 IDA 的理解方式。
让我们处理下前面的测试题，保存成一个头文件：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

struct Base {     Base(int a, long b);     int m_a;     virtual void print();     long m_b;     virtual ~Base(); };   struct Derived : public Base {     Derived(int a, long b, int c);     virtual ~Derived();     void print();     int m_c; };

导入IDA中，然后插入Base_vtbl和Derived_vtbl两张虚函数表：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

00000000 ; --------------------------------------------------------------------------- 00000000 00000000 Base_vtbl       struc ; (sizeof=0x18, align=0x8, copyof_110) 00000000 print           dq ?                    ; offset 00000008 Base_dtor_8     dq ?                    ; offset 00000010 Base_dtor_10    dq ?                    ; offset 00000018 Base_vtbl       ends 00000018 00000000 ; --------------------------------------------------------------------------- 00000000 00000000 Derived_vtbl    struc ; (sizeof=0x18, align=0x8, copyof_111) 00000000 print           dq ?                    ; offset 00000008 Derived_dtor_8  dq ?                    ; offset 00000010 Derived_dtor_10 dq ?                    ; offset 00000018 Derived_vtbl    ends 00000018

注意看虚函数表的大小，是不是比预想的多了一个四字？

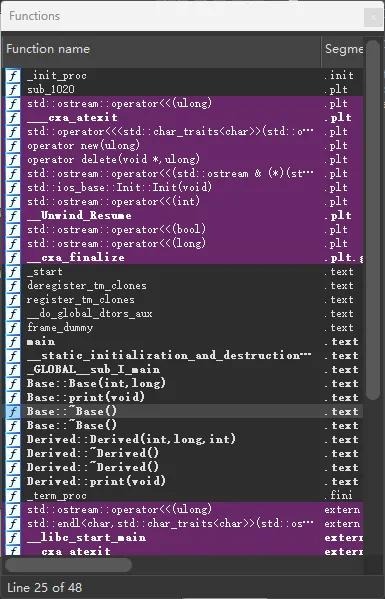

不难发现，虚析构函数指针多了一个。查验可知，虚析构函数确实都多了一个：

所以，我们在构造虚函数表的时候，一定要留意虚析构函数指针，必须构造两个。

---

终

有空再写~~
