AndroidManifest解析笔记

前言

自笔者开始学习Android逆向的第一天起就一直被一个问题所困扰，那就是 AndroidManifest 的编码总是会有问题，相信大家在使用 apktool 的时候如果直接 java -jar apktool.jar d HelloWorld.apk 那么在回编译的时候大概率会出现报错，这是因为 apktool 的资源的解析是有问题的，添加参数 -r 可以屏蔽资源的解析，但这样一来 AndroidManifest 就无法解析，而在逆向的过程中很常见的需求就是修改 AndroidManifest，例如修改启动类又或者添加debug标志，所以很容易想到的方法就是 apktool.jar 屏蔽资源解析，然后使用针对 AndroidManifest 修改的工具，这其中有许多大佬开源了自己的 AndroidManifest 修改工具，但在笔者的使用过程中总是会有这样那样的问题，正好最近有个需求是修改 AndroidManifest，所以在这里记录下 AndroidManifest.xml 二进制文件格式分析。

格式总览

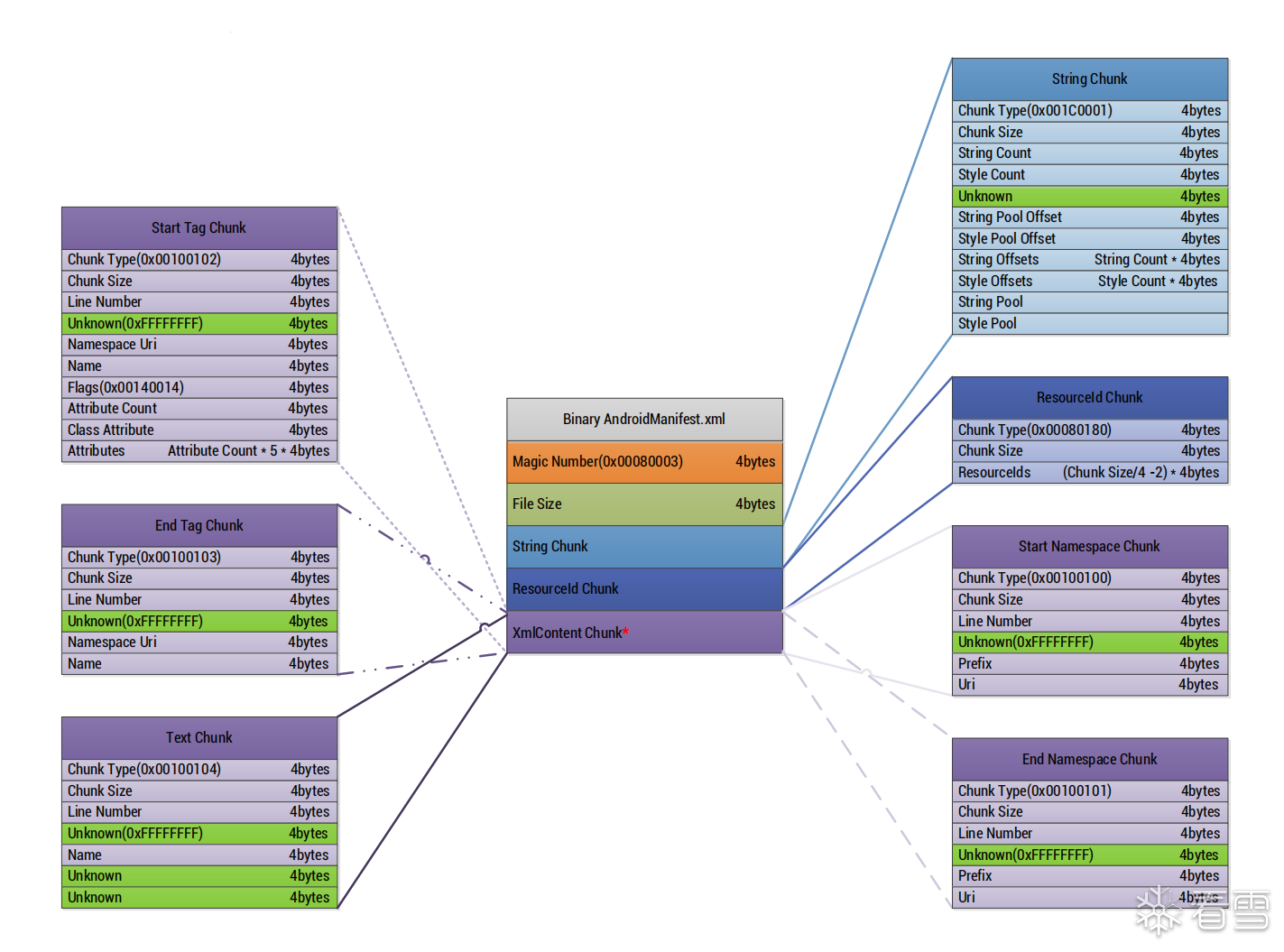

首先按照惯例先贴上这张神图，可以说总结的非常全面，但此图也有自己的问题，那就是难以让读者在心中对整个 AndroidManifest 格式有一个大概的雏形。

image-20240118115059789

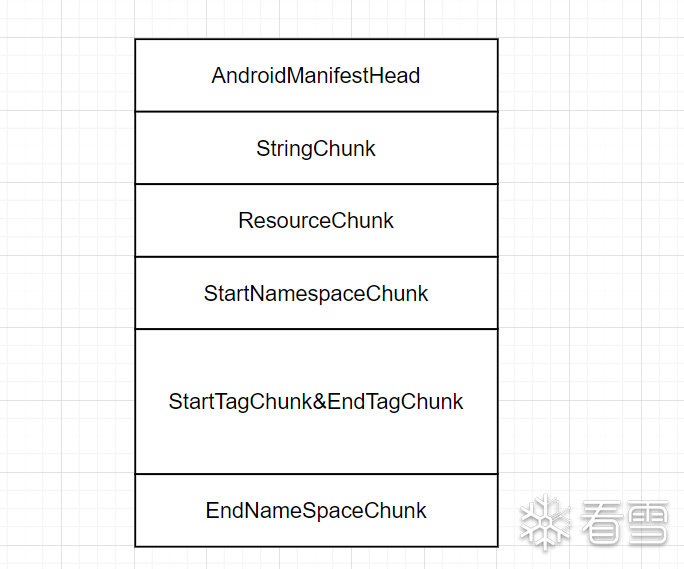

在这张图中我们需要明白整个 AndroidManifest 格式分为六大区域，七种 Chunk 类型，依次分别为 AndroidManifestHead、StringChunk、ResourceChunk、StartNamespaceChunk、StartTagChunk&EndTagChunk、EndNameSpaceChunk，其中多数情况 ResourceChunk为空，不太需要处理。

image-20240118120250532

AndroidManifestHead

AndroidManifestHead 占据 AndroidManifest 的起始8个字节，magic 标志着这个文件是 AndroidManifest 格式，file_size 记录 AndroidManifest.xml 文件的大小，这种文件头可以说是异常简单了。

1
2
3
4
struct sAndroidManifestHead {
    int magic;      // 标志着这个文件是 AndroidManifest 格式
    int file_size;  // 记录 AndroidManifest.xml  文件的大小
};

Chunk

笔者在分析完 AndroidManifest 后总结出 StringChunk、ResourceChunk、StartNamespaceChunk、StartTagChunk、EndTagChunk、EndNameSpaceChunk 这六种块的前 8 个字节是一样的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
class Chunk {
public:
    struct sChunk {
        int cSignature;         // 块类型标识
                                // cSignature = 0x001c0001  stringChunk
                                // cSignature = 0x00080180  resourceChunk
                                // cSignature = 0x00100100  startNameSpaceChunk
                                // cSignature = 0x00100102  startTagChunk
                                // cSignature = 0x00100103  endTagChunk
                                // cSignature = 0x00100101  EndNameSpaceChunk
        int cSize;              // 块的大小
    };

    char* addr;
    int cSignature;
    int cSize;
    std::string type;

    Chunk(char* chunk_addr) {
        addr = chunk_addr;
        sChunk* mChunk = (sChunk*)chunk_addr;

        if (mChunk->cSignature == 0x001c0001) {
            type = "StringChunk";
        }
        else if (mChunk->cSignature == 0x00080180) {
            type = "ResourceChunk";
        }
        else if (mChunk->cSignature == 0x00100100) {
            type = "StartNameSpaceChunk";
        }
        else if (mChunk->cSignature == 0x00100102) {
            type = "StartTagChunk";
        }
        else if (mChunk->cSignature == 0x00100103) {
            type = "EndTagChunk";
        }
        else if (mChunk->cSignature == 0x00100101) {
            type = "EndNameSpaceChunk";
        }
        else {
            type = "Unknown";
        }
        cSize = mChunk->cSize;
    };

    Chunk* NextChunk() {
        return new Chunk((addr + cSize));
    }
};

由此我们可以先对 AndroidManifest 进行一个大致的遍历

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
int main() {
    const char* AndroidManifestPath = "C:\\Users\\lxz\\source\\repos\\AndroidManifestEditor\\AndroidManifest.xml";
    char* mAndroidManifestData = read_file(AndroidManifestPath);
    sAndroidManifestHead* mAndroidManifestHead = (sAndroidManifestHead*)mAndroidManifestData;

    std::vector<Chunk*> chunkList;

    Chunk* chunk = new Chunk(((char*)mAndroidManifestHead + sizeof(sAndroidManifestHead)));
    while (chunk->type != "Unknown") {
        chunkList.push_back(chunk);
        chunk = chunk->NextChunk();
    }

    for (Chunk* chunk : chunkList) {
        printf("%s\n\n", chunk->type.c_str());
        delete chunk;
    }
    chunkList.clear();
}

输出的结果大致为这样，可以完美对应上方的结构图

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
stringChunk

resourceChunk

startNameSpaceChunk

startTagChunk

startTagChunk

endTagChunk

startTagChunk

......

endTagChunk

endTagChunk

EndNameSpaceChunk

StringChunk

StringChunk 的格式就略显复杂了，首先我们先看下 StringChunk 的头部，这部分共计 7 * 4 = 28 个字节的大小

1
2
3
4
5
6
7
8
9
struct sStringChunk {
    int scSignature;        // 块类型标识
    int scSize;             // 块大小
    int scStringCount;      // 字符串数量
    int scStyleCount;       // 未知
    int scUNKNOWN;          // 未知
    int scStringPoolOffset; // 字符串集合的偏移
    int scStylePoolOffset;  // 未知
};

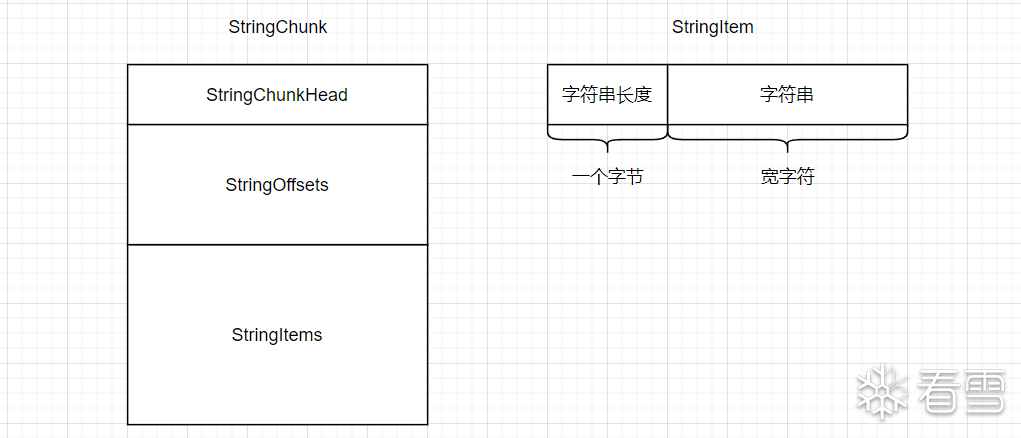

StringChunk 的头部后面跟着的就是 StringOffsets，这部分区域是的大小为 scStringCount *4，其中每4个字节记录了对应 StringItem 在文件中的的偏移，这里画了一个图可以直观理解一下。

image-20240118150033561

根据上述的分析，故此我们可以定义如下两个类 StringItem、StringChunk

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
class StringItem {
public:
    std::wstring wstr;
    char* raw;
    int size;
    StringItem(char* addr) {
        size = 2 + (*(wchar_t*)addr) * 2 + 2;
        wstr = std::wstring((wchar_t*)(addr + 2));
        raw = addr;
    }
    StringItem(std::wstring v_wstr) {
        wstr = v_wstr;
        size = 2 + wstr.length() * 2 + 2;
        raw = (char*)malloc(size);
        memset(raw, 0, size);
        *(int*)raw = wstr.length();
        memcpy(raw + 2, wstr.c_str(), wstr.length() * 2);
    }
};

class StringChunk {
public:
    struct sStringChunk {
        int scSignature;        // 块类型标识
        int scSize;             // 块大小
        int scStringCount;      // 字符串数量
        int scStyleCount;       // 未知
        int scUNKNOWN;          // 未知
        int scStringPoolOffset; // 字符串集合的偏移
        int scStylePoolOffset;  // 未知
    };

    char* addr;
    int scSignature;
    int scSize;
    int scStringCount;
    int scStyleCount;
    int scUNKNOWN;
    int scStringPoolOffset;
    int scStylePoolOffset;
    int* scStringOffsets;

    std::vector<int> StringOffset_list;
    std::vector<StringItem*> StringItem_list;

    StringChunk(char* chunk_addr) {
        addr = chunk_addr;

        scSignature = ((sStringChunk*)chunk_addr)->scSignature;
        scSize = ((sStringChunk*)chunk_addr)->scSize;
        scStringCount = ((sStringChunk*)chunk_addr)->scStringCount;
        scStyleCount = ((sStringChunk*)chunk_addr)->scStyleCount;
        scUNKNOWN = ((sStringChunk*)chunk_addr)->scUNKNOWN;
        scStringPoolOffset = ((sStringChunk*)chunk_addr)->scStringPoolOffset;
        scStylePoolOffset = ((sStringChunk*)chunk_addr)->scStylePoolOffset;

        scStringOffsets = (int*)(chunk_addr + sizeof(sStringChunk));
        for (int i = 0; i < scStringCount; i++) {
            StringOffset_list.push_back(*(scStringOffsets + i));
            StringItem_list.push_back(new StringItem(addr + scStringPoolOffset + *(scStringOffsets + i)));
        }
    };

    std::wstring get_string(int id) {
        return (wchar_t*)(addr + scStringPoolOffset + *(scStringOffsets + id) + 2);
    }

    void show_all_string() {
        for(int i = 0; i < scStringCount; i++) {
            printf("%S \n", get_string(i).c_str());
        }
    }
};

StartNamespaceChunk

StartNamespaceChunk 中主要的字段为 sncPrefix，可以轻易解析通过 StringChunk 解析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
class StartNamespaceChunk {
public:
    struct sStartNamespaceChunk {
        int scSignature;    // 块类型标识
        int scSize;         // 块大小
        int sncLineNumber;  // 该属性在明文中的行数
        int sncUNKNOWN;     // 未知
        int sncPrefix;      // 字符串索引
        int sncUri;         // 字符串 Uri 索引
    };

    char* addr;
    int scSignature;
    int scSize;
    int sncLineNumber;
    int sncUNKNOWN;
    int sncPrefix;
    int sncUri;

    StringChunk*& mStringChunk;

    StartNamespaceChunk(char* chunk_addr, StringChunk** vStringChunk):mStringChunk(*vStringChunk) {
        addr = chunk_addr;
        scSignature = ((sStartNamespaceChunk*)addr)->scSignature;
        scSize = ((sStartNamespaceChunk*)addr)->scSize;
        sncLineNumber = ((sStartNamespaceChunk*)addr)->sncLineNumber;
        sncUNKNOWN = ((sStartNamespaceChunk*)addr)->sncUNKNOWN;
        sncPrefix = ((sStartNamespaceChunk*)addr)->sncPrefix;
        sncUri = ((sStartNamespaceChunk*)addr)->sncUri;
    };

    std::wstring get_string() {
        return mStringChunk->get_string(sncPrefix);
    }
};

EndNameSpaceChunk

和 StartNamespaceChunk 不能说一模一样，只能说完全相同

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
class EndNameSpaceChunk {
public:
    struct sEndTagChunk {
        int encSignature;
        int encSize;
        int encLineNumber;
        int encUNKNOWN;
        int encPrefix;
        int encUri;
    };

    char* addr;
    int encSignature;
    int encSize;
    int encLineNumber;
    int encUNKNOWN;
    int encPrefix;
    int encUri;

    StringChunk*& mStringChunk;

    EndNameSpaceChunk(char* chunk_addr, StringChunk** vStringChunk): mStringChunk(*vStringChunk) {
        addr = chunk_addr;
        encSignature = ((sEndTagChunk*)addr)->encSignature;
        encSize = ((sEndTagChunk*)addr)->encSize;
        encLineNumber = ((sEndTagChunk*)addr)->encLineNumber;
        encUNKNOWN = ((sEndTagChunk*)addr)->encUNKNOWN;
        encPrefix = ((sEndTagChunk*)addr)->encPrefix;
        encUri = ((sEndTagChunk*)addr)->encUri;
    };

    std::wstring get_string() {
        return mStringChunk->get_string(encPrefix);
    }
};

StartTagChunk

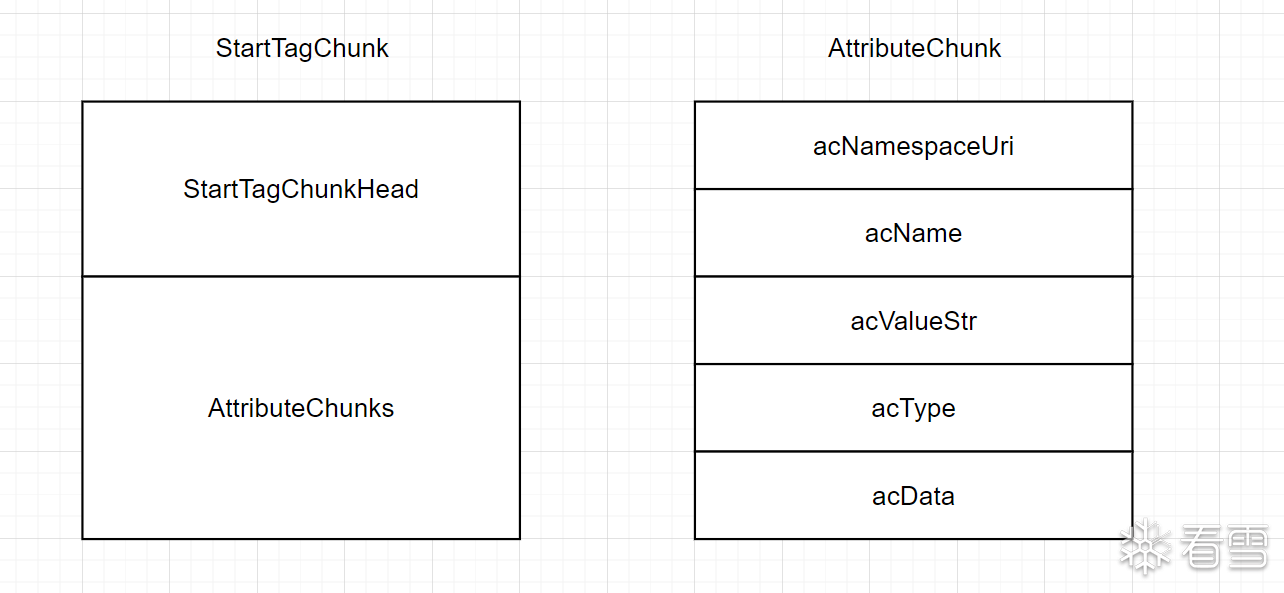

StartTagChunk 也是稍显复杂的一个结构，因为其中包含了另一个结构 AttributeChunk，这里同样给出一个关系结构图

image-20240118152802749

由此我们可以定义如下两个类 AttributeChunk、StartTagChunk

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
class AttributeChunk {
public:
    struct sAttributeChunk {
        int acNamespaceUri; // 命名空间 Uri 索引
        int acName;         // 属性名称(key)的索引
        int acValueStr;     // 属性内容(value)的索引（当前类型为字符串时使用该属性）
        int acType;         // 属性内容(value)的类型（String、Int、Bool ...）
        int acData;         // 属性内容(value)的索引
    };

    int acNamespaceUri;
    int acName;
    int acValueStr;
    int acType;
    int acData;

    char* addr;
    StringChunk*& mStringChunk;
    StartNamespaceChunk*& mStartNamespaceChunk;

    AttributeChunk(char* chunk_addr, StringChunk** vStringChunk, StartNamespaceChunk** vStartNamespaceChunk):mStringChunk(*vStringChunk), mStartNamespaceChunk(*vStartNamespaceChunk) {
        addr = chunk_addr;
        acNamespaceUri = ((sAttributeChunk*)addr)->acNamespaceUri;
        acName = ((sAttributeChunk*)addr)->acName;
        acValueStr = ((sAttributeChunk*)addr)->acValueStr;
        acType = ((sAttributeChunk*)addr)->acType;
        acData = ((sAttributeChunk*)addr)->acData;
    }

    std::wstring get_srting() {
        std::wstring resData = L"";
        // 当 acNamespaceUri 为 -1 时，命名空间为空
        if (acNamespaceUri != -1 && acNamespaceUri == mStartNamespaceChunk->sncUri) {
            resData = mStartNamespaceChunk->get_string() + L":";
        }

        // 属性名称
        resData += mStringChunk->get_string(acName);
        resData += L"=";

        // 属性值的数据类型
        if ((acType >> 24) == 0x10) {
            // 整数
            resData += L"\"";
            resData += std::to_wstring(acData);
            resData += L"\"";
        }
        else if ((acType >> 24) == 0x3) {
            // 字符串
            resData += L"\"";
            resData += mStringChunk->get_string(acValueStr);
            resData += L"\"";
        }
        else if ((acType >> 24) == 0x12) {
            // 布尔值
            if (acData == -1) {
                resData += L"\"true\"";
            }
            else if (acData == 0) {
                resData += L"\"false\"";
            }
        }
        else if ((acType >> 24) == 0x1) {
            // 资源ID
            std::wstringstream wss;
            wss << std::hex << acData;
            std::wstring hexString = wss.str();
            resData += L"\"@";
            resData += std::wstring(wss.str());
            resData += L"\"";
        }
        else {
            // 未识别格式
            std::wstringstream wss;
            wss << std::hex << acData;
            std::wstring hexString = wss.str();
            resData += L"\"[Error]";
            resData += std::wstring(wss.str());
            resData += L"\"";
        }
        return resData;
    }

    void change_value(int value) {
        ((sAttributeChunk*)addr)->acValueStr = value;
        acValueStr = value;
    }
};


class StartTagChunk {
public:
    struct sStartTagChunk {
        int stcSignature;       // 块类型标识
        int stcSize;            // 块大小
        int stcLineNumber;      // 该属性在明文中的行数
        int stcUNKNOWN;         // 未知
        int stcNamespaceUri;    // 字符串 Uri 索引
        int stcName;            // Tag 名称字符串索引
        int stcFlags;           // 未知
        int stcAttributeCount;  // AttributeChunk 的数量
        int stcClassAttribute;  // 未知
    };

    char* addr;
    int stcSignature;
    int stcSize;
    int stcLineNumber;
    int stcUNKNOWN;
    int stcNamespaceUri;
    int stcName;
    int stcFlags;
    int stcAttributeCount;
    int stcClassAttribute;

    EndTagChunk* mEndTagChunk;
    StringChunk*& mStringChunk;
    StartNamespaceChunk*& mStartNamespaceChunk;
    std::vector<AttributeChunk*> mAttributeChunkList;

    StartTagChunk(char* chunk_addr, StringChunk** vStringChunk, StartNamespaceChunk** vStartNamespaceChunk)
        : mStringChunk(*vStringChunk), mStartNamespaceChunk(*vStartNamespaceChunk){
        addr = chunk_addr;
        stcSignature = ((sStartTagChunk*)addr)->stcSignature;
        stcSize = ((sStartTagChunk*)addr)->stcSize;
        stcLineNumber = ((sStartTagChunk*)addr)->stcLineNumber;
        stcUNKNOWN = ((sStartTagChunk*)addr)->stcUNKNOWN;
        stcName = ((sStartTagChunk*)addr)->stcName;
        stcFlags = ((sStartTagChunk*)addr)->stcFlags;
        stcAttributeCount = ((sStartTagChunk*)addr)->stcAttributeCount;
        stcClassAttribute = ((sStartTagChunk*)addr)->stcClassAttribute;

        for (int i = 0; i < stcAttributeCount; i++) {
            AttributeChunk* mAttributeChunk =
                new AttributeChunk(addr + sizeof(sStartTagChunk) + 20 * i, &mStringChunk, &mStartNamespaceChunk);
            mAttributeChunkList.push_back(mAttributeChunk);
        }
    };

    std::wstring get_string() {
        std::wstring resData = L"";
        for (int i = 0; i < mAttributeChunkList.size(); i++) {
            resData += mAttributeChunkList[i]->get_srting();
            resData += L"\n";
        }
        return resData;
    }
};

EndTagChunk

EndTagChunk 的结构就没 StartTagChunk 那么复杂了，可以说简单的很

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
class EndTagChunk {
public:
    struct sEndTagChunk {
        int etcSignature;       // 块类型标识
        int etcSize;            // 块大小
        int etcLineNumber;      // 该属性在明文中的行数
        int etcUNKNOWN;         // 未知
        int etcNamespaceUri;    // 字符串 Uri 索引
        int etcName;            // Tag 名称字符串索引
    };

    char* addr;
    int etcSignature;
    int etcSize;
    int etcLineNumber;
    int etcUNKNOWN;
    int etcNamespaceUri;
    int etcName;

    StringChunk*& mStringChunk;

    EndTagChunk(char* chunk_addr, StringChunk** vStringChunk):mStringChunk(*vStringChunk) {
        addr = chunk_addr;
        etcSignature = ((sEndTagChunk*)addr)->etcSignature;
        etcSize = ((sEndTagChunk*)addr)->etcSize;
        etcLineNumber = ((sEndTagChunk*)addr)->etcLineNumber;
        etcUNKNOWN = ((sEndTagChunk*)addr)->etcUNKNOWN;
        etcName = ((sEndTagChunk*)addr)->etcName;
    };

    std::wstring get_string() {
        return mStringChunk->get_string(etcName);
    }
};

解析小结

自此我们在为借助其他第三方模块的完成了绝大部分 Chunk 的解析，AndroidManifest 也变得不再神秘，那么就简单的 show 一下吧

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
class AndroidManifestEditor {
public:
    struct sAndroidManifestHead {
        int magic;
        int file_size;
    };

    char* mAndroidManifestData;
    sAndroidManifestHead* mAndroidManifestHead;
    StringChunk* mStringChunk;
    StartNamespaceChunk* mStartNamespaceChunk;
    EndNameSpaceChunk* mEndNameSpaceChunk;

    std::vector<Chunk*> chunk_list;
    std::vector<StartTagChunk*> mStartTagChunkList;
    std::vector<EndTagChunk*> mEndTagChunkList;
    std::vector<StartTagChunk*> tStartTagChunkList; // 临时列表，用来处理 StartTagChunk 和 EndTagChunk 的对应关系

    AndroidManifestEditor(const char* AndroidManifestPath) {
        mAndroidManifestData = read_file(AndroidManifestPath);
        mAndroidManifestHead = (sAndroidManifestHead*)mAndroidManifestData;

        Chunk* chunk = new Chunk(((char*)mAndroidManifestHead + sizeof(sAndroidManifestHead)));
        while (chunk->type != "Unknown") {
            if (chunk->type == "StartNameSpaceChunk") {
                mStartNamespaceChunk = new StartNamespaceChunk(chunk->addr, &mStringChunk);
            }
            else if (chunk->type == "StringChunk") {
                mStringChunk = new StringChunk(chunk->addr);
            }
            else if (chunk->type == "StartTagChunk") {
                StartTagChunk* mStartTagChunk = new StartTagChunk(chunk->addr, &mStringChunk, &mStartNamespaceChunk);
                mStartTagChunkList.push_back(mStartTagChunk);
                tStartTagChunkList.push_back(mStartTagChunk);
            }
            else if (chunk->type == "EndTagChunk") {
                EndTagChunk* mEndTagChunk = new EndTagChunk(chunk->addr, &mStringChunk);
                mEndTagChunkList.push_back(mEndTagChunk);
                tStartTagChunkList.back()->mEndTagChunk = mEndTagChunk;
                tStartTagChunkList.pop_back();
            }
            else if (chunk->type == "EndNameSpaceChunk") {
                mEndNameSpaceChunk = new EndNameSpaceChunk(chunk->addr, &mStringChunk);
            }
            chunk_list.push_back(chunk);
            chunk = chunk->NextChunk();
        }
    }

    void show() {
        printf("AndroidManifest 魔数\t\t\t\t0x%x\n", mAndroidManifestHead->magic);
        printf("AndroidManifest 文件大小\t\t\t0x%x\n", mAndroidManifestHead->file_size);

        int start_tag_id = 0;
        int end_tag_id = 0;

        for (int i = 0; i < chunk_list.size(); i++) {
            Chunk* chunk = chunk_list[i];
            printf("[%s] \n", chunk->type.c_str());
            if (chunk->type == "StringChunk") {
                printf("\n");
            }
            else if (chunk->type == "ResourceChunk") {
                printf("\n");
            }
            else if (chunk->type == "StartNameSpaceChunk") {
                std::wstring wstr = mStartNamespaceChunk->get_string();
                printf("%S\n\n", wstr.c_str());
            }
            else if (chunk->type == "StartTagChunk") {
                StartTagChunk* mStartTagChunk = mStartTagChunkList[start_tag_id];
                printf("%S\n", mStartTagChunk->mEndTagChunk->get_string().c_str());
                printf("%S\n\n", mStartTagChunk->get_string().c_str());
                start_tag_id++;
            }
            else if (chunk->type == "EndTagChunk") {
                EndTagChunk* mEndTagChunk = mEndTagChunkList[end_tag_id];
                std::wstring wstr = mEndTagChunk->get_string();
                end_tag_id++;
                printf("%S\n\n", wstr.c_str());
            }
            else if (chunk->type == "EndNameSpaceChunk") {
                std::wstring wstr = mEndNameSpaceChunk->get_string();
                printf("%S\n\n", wstr.c_str());
                break;
            }
        }
    }
};

添加字符串

现在 AndroidManifest 已经可以任由我们搓扁揉圆了，重新组装 StringChunk 一下，就可以向其中添加任意的字符串

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
class StringChunk {
    char* build_raw() {
        int raw_size = sizeof(sStringChunk);
        for (int i = 0; i < StringOffset_list.size(); i++) {
            raw_size += 4;
        }
        for (int i = 0; i < StringItem_list.size(); i++) {
            raw_size += StringItem_list[i]->size;
        }

        // 4字节对齐
        if (raw_size % 4 != 0) {
            raw_size += 2;
        }

        char* new_raw = (char*)malloc(raw_size);
        memset(new_raw, 0, raw_size);
        char* cp_point = new_raw;

        ((sStringChunk*)cp_point)->scSignature = scSignature;
        ((sStringChunk*)cp_point)->scSize = raw_size;
        ((sStringChunk*)cp_point)->scStringCount = StringItem_list.size();
        ((sStringChunk*)cp_point)->scStyleCount = scStyleCount;
        ((sStringChunk*)cp_point)->scUNKNOWN = scUNKNOWN;
        ((sStringChunk*)cp_point)->scStringPoolOffset = scStringPoolOffset + 4;
        ((sStringChunk*)cp_point)->scStylePoolOffset = scStylePoolOffset;
        cp_point += sizeof(sStringChunk);

        for (int i = 0; i < StringOffset_list.size(); i++) {
            *(int*)cp_point = StringOffset_list[i];
            cp_point += 4;
        }

        for (int i = 0; i < StringItem_list.size(); i++) {
            memcpy(cp_point, StringItem_list[i]->raw, StringItem_list[i]->size);
            cp_point += StringItem_list[i]->size;
        }

        return new_raw;
    }

    StringChunk* add_string(std::wstring wstr) {

        StringItem* mStringItem = new StringItem(wstr);

        int new_StringOffset = StringOffset_list[scStringCount - 1] + StringItem_list[scStringCount - 1]->size;

        StringOffset_list.push_back(new_StringOffset);

        StringItem_list.push_back(mStringItem);

        char* new_raw = build_raw();

        return new StringChunk(new_raw);
    }

};

class AndroidManifestEditor {
    void add_string(std::wstring wstr) {
        for (int i = 0; i < chunk_list.size(); i++) {
            if (chunk_list[i]->type == "StringChunk") {
                StringChunk* newStringChunk = mStringChunk->add_string(wstr);
                mAndroidManifestHead->file_size += (newStringChunk->scSize - mStringChunk->scSize);
                delete mStringChunk;
                mStringChunk = newStringChunk;
                delete chunk_list[i];
                chunk_list[i] = new Chunk(newStringChunk->addr);
            }
        }
    }
};

修改启动项

当 AndroidManifest 中已存在 ApplicationName 时直接修改其字符串偏移即可

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
class AndroidManifestEditor {
    void change_application_name(std::wstring application_name) {
        int id = mStringChunk->get_id(application_name);
        if (id == -1) {
            add_string(application_name);
            id = mStringChunk->get_id(application_name);
        }
        for (int i = 0; i < mStartTagChunkList.size(); i++) {
            if (mStartTagChunkList[i]->mEndTagChunk->get_string() == L"application") {
                std::vector<AttributeChunk*> tAttributeChunkList =
                    mStartTagChunkList[i]->mAttributeChunkList;
                for (int i = 0; i < tAttributeChunkList.size(); i++) {
                    if (tAttributeChunkList[i]->get_srting().find(L"android:name=") != std::wstring::npos) {
                        tAttributeChunkList[i]->change_value(id);
                    }
                }
            }
        }
    }
};

总结

AndroidManifest 的数据结构总体来讲不算过于复杂，和PE/ELF比算是小巫见大巫了，不过由于搞得不是很精细，后续还需要多做一些测试

参考资料

Android逆向之旅—解析编译之后的AndroidManifest文件格式

AndroidManifest二进制文件格式分析

Android逆向笔记 —— AndroidManifest.xml 文件格式解析

最新回复：
你瞒我瞒 2024-01-19 10:34:22
太细了
简单的简单 2024-01-19 11:20:08
你瞒我瞒 太细了
因为我真的在试图教会你
Amun 2024-01-19 12:14:29
看得出来这是逆向出来，没有细看 AOSP 的相关源码，有一些情况没有覆盖到，还有改进空间。
你瞒我瞒 2024-01-23 09:21:20
简单的简单 因为我真的在试图教会你 [em_51]
现在有部分app试图在破坏某个部分但是不影响app安装，影响文件的解析来规避上架检测，或者让反编译工具反编译失效
palkiver 2024-01-24 10:51:39
你瞒我瞒 现在有部分app试图在破坏某个部分但是不影响app安装，影响文件的解析来规避上架检测，或者让反编译工具反编译失效[em_2]
现在的APP为了切支付也是煞费苦心
